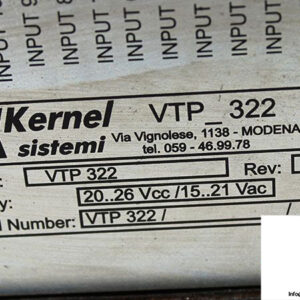

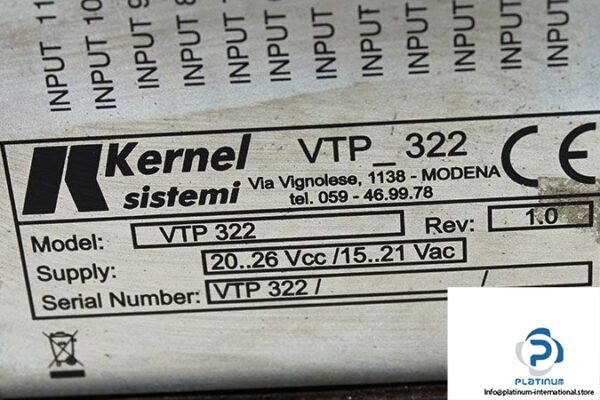

Manufacturer: Kernel Sistemi

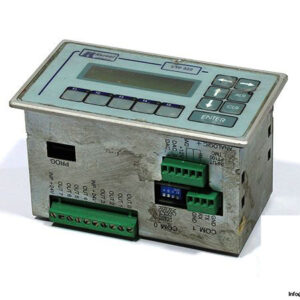

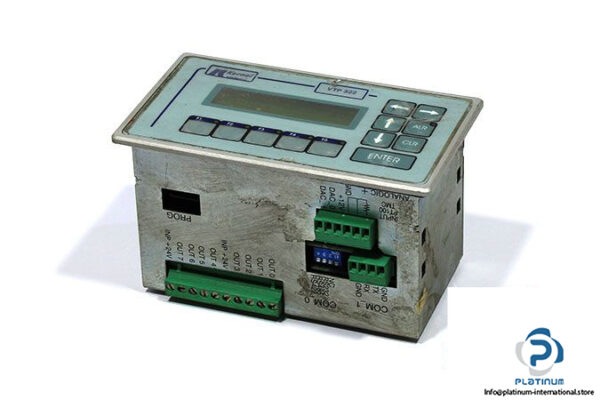

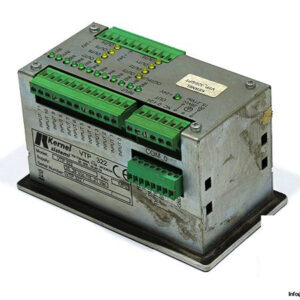

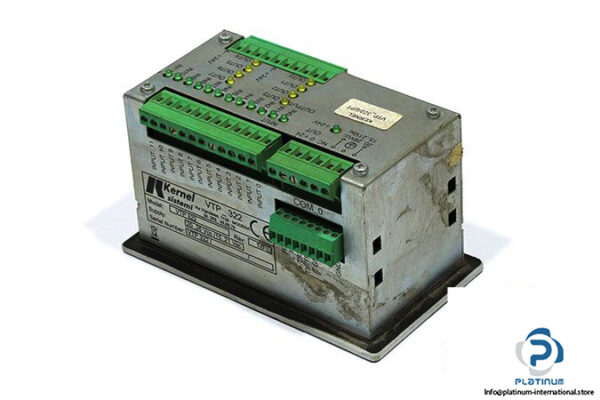

Type: Operator Panel with Integrated PLC

Model: VTP 322

Power Supply Voltage: 20…26 VCC / 15…21 V AC

Current Consumption: Under 100 mA without loads

Memory: 1024 DATA MEMORY

Program Memory: 32K Bytes

Pages Memory: 32K Bytes

EEprom: External Non-Volatile EEPROM 64 KB for Storing Recipes, Manageable Blocks or Benches

Digital Inputs: 12 PNP

Analogic Inputs: 1

Digital Outputs: 8 PNP

Analogic Outputs: 2

Current Analog Input Impedance: 250 Ohm

Voltage Analog Input Impedance: 10 KOhm

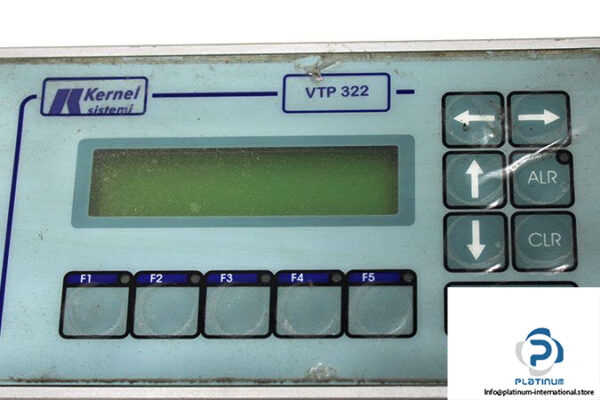

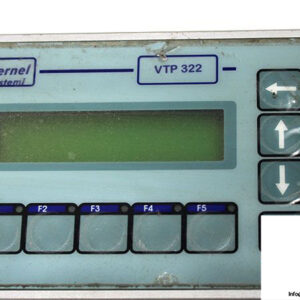

Keyboard: Membrane Keyboard on Anodized Aluminum Front Part with 5 Function Buttons

Display: Alphanumeric Display 16 Characters on 2 Rows, with Led’s Backlight. Five Leds on Function Buttons and One Alarm Led. on Demand Available Also Cyrillic Display

Size: Front view 133×74 mm, Depth 63 mm

Temperature: -10…70 °C

Weight: 0.57 kg
