Manufacturer: POWERTRONIX
Type: Solar Inverter

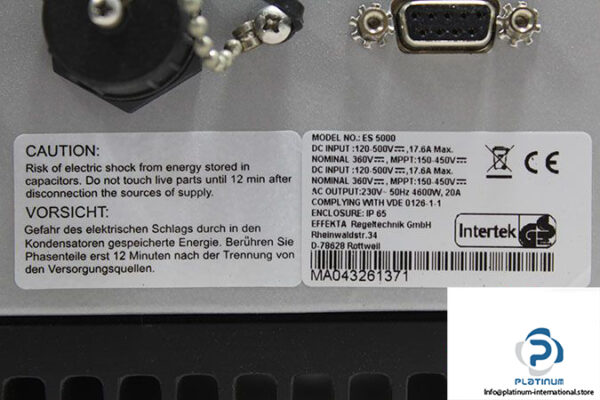

Model: ES5000
Application: Ideal for any solar module
Features:
- A free slot allows you to install additional data ports such as RS-485, USB, TCP / IP or a relay control board

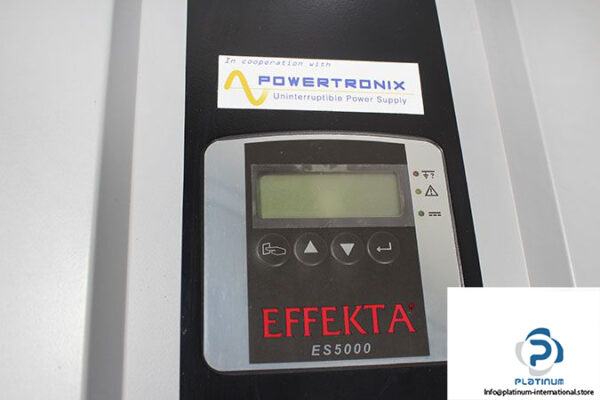

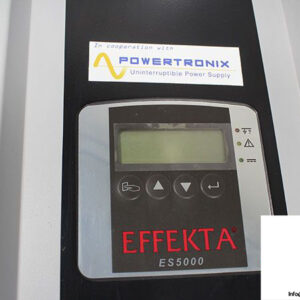

- equipped with an LCD display for basic information and an RS-232 port
- The ES 5000 model has the ability to intelligently work not only with one, but also with two battery modules
DC Input
Operating voltage: 120VDC … 500 VDC
Nominal Voltage: 360 VDC Â
MPPT range: 150 – 450 VDC
Max Current: 17.65A
No. MPP trackers: 2
AC Output
Nominal Power: 5000 W
Max. Power: 5300 W
Voltage range: 184 – 264.5 VAC
Nominal current: 21.7 A
Frequency: 50 / 60 Hz
Output connection form: 1-phase, mains connection (L,N,PE)
Type of Connection: ON Grid
Protection Class: IP 65
Dimensions (Depth x Width x Height): Â 455 x 510 x 170 mm
Temperature:  -25 … 50 ° C
Weight: 31.8 kg
