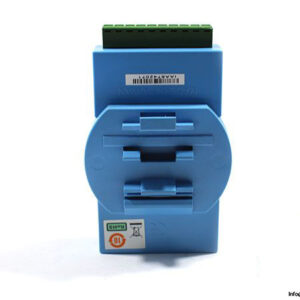

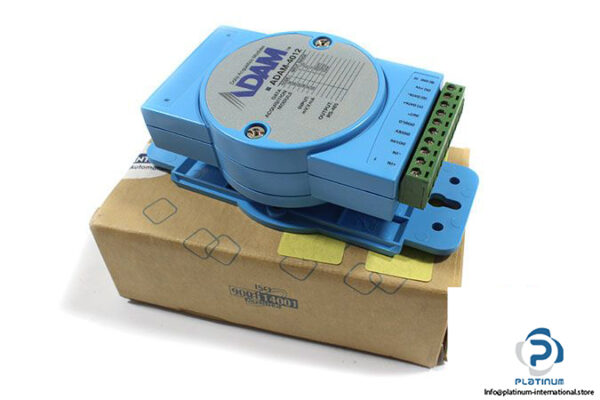

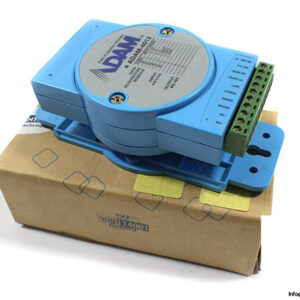

Manufacturer: ADVANTECH
Type: Analog Input Module

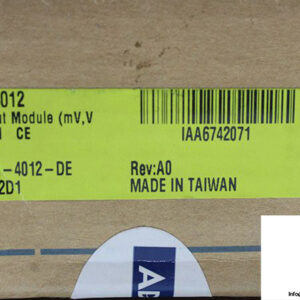

Model: ADAM-4012-DE
Application:
- Remote data acquisition
- Process monitoring
- Industrial process control
- Energy management
- Supervisory control
- Security systems
- Laboratory automation
- Building automation
- Product testing
- Direct digital control
Input Voltage DC: 10 … 30 V
Power Consumption: 1.2 W
Analog Input
Total channels of analog input: 1
Differential channels: 1

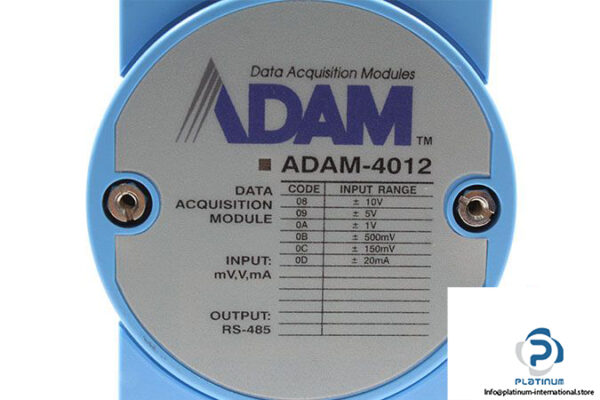

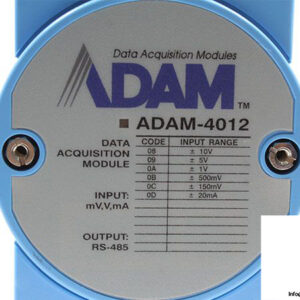

Voltage range: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V
Current range: -20 … 20 mA
Current mode: Requires optional external 125 ohm resistor
Sampling rate: 10 Hz
Resolutions: 16 Bit
Digital Input
Total channels of digital input: 1
Sink/Source: Sink
On voltage level for wet contact: 3.5 … 30 V
Off voltage level for wet contact: 0 … 1 V
Counter: 50Hz, 16 bit
Digital Output
Total channels of digital output: 2
Type: Open collector
Sink/Source: Sink
Load voltage: 0 … 30 V
Max. load current: 30 mA

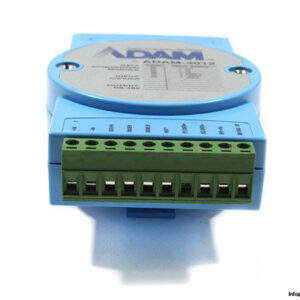

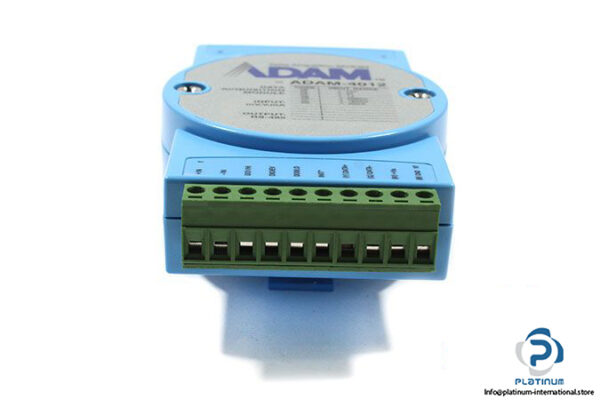

Connectors: Screw Terminal
Dimensions ( Height x Width x Depth ): 112 x 70 x 30 mm
Temperature: -10 … 70 °C
Weight: 0.18 kg
