Manufacturer: Pepperl+Fuchs

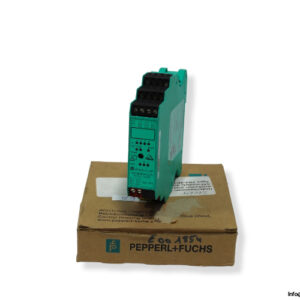

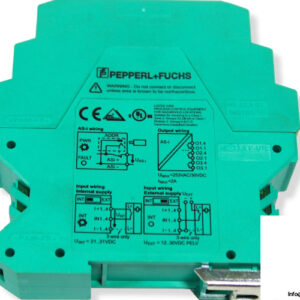

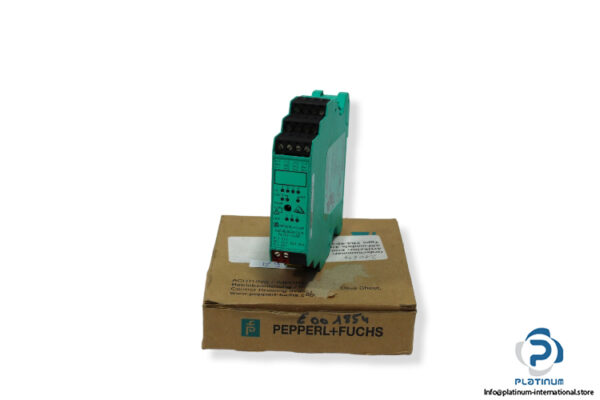

Type: AS-Interface sensor/actuator module

Model: VBA-4E3A-KE-ZE/R

Part No.: 114307

Art No.: E001854

Order No.: S0000539

Input Voltage: 21 … 31 V DC

Output Voltage: 253VAC/30VDC

Auxiliary voltage (input) UEXT: 12 … 30 V DC

Number of Inputs: 4 Inputs (PNP)

Number of Outputs: 3 Outputs

Contacts: 3 Normally Open contacts

Ambient Temperature: -25 … 60 °C

Degree of Protection: IP20

Mounting: DIN mounting rail
