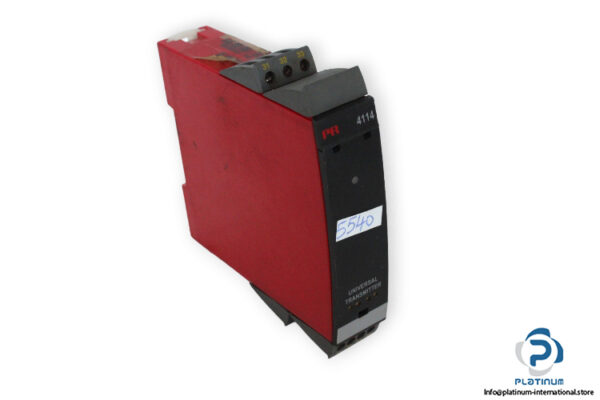

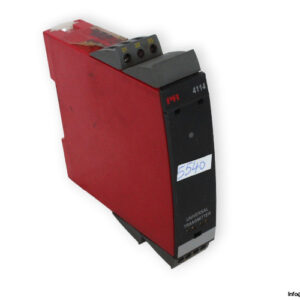

PR 4114 UNIVERSAL TRANSMITTER

Manufacturer: PR Electronics
Type: Universal transmitter
Part No.: 4114

Supply voltage, universal: 21.6…253 VAC, 50…60 Hz or 19.2…300 VDC
Fuse : 400 mA SB / 250 VAC
Max. required power: ≤ 2.0 W
Max. power dissipation: ≤ 2.0 W
Isolation voltage
Isolation voltage, test / working: 2.3 kVAC / 250 VAC
Response time
Temperature input (0…90%, 100…10%): ≤ 1 s
mA / V input (0…90%, 100…10%): ≤ 400 ms
Auxiliary supplies
2-w. supply (term. 44…43): 25…16 VDC / 0…20 Ma
Programming: PR 4500 communication interfaces
Signal / noise ratio: Min. 60 dB
Operating temperature: -20°C to +60°C
Dimensions (HxWxD): 109 x 23.5 x 104 mm
