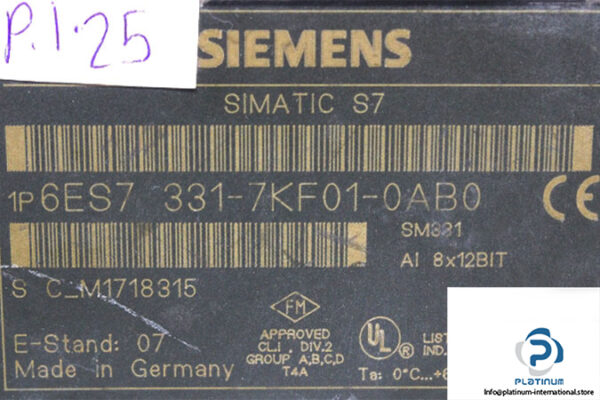

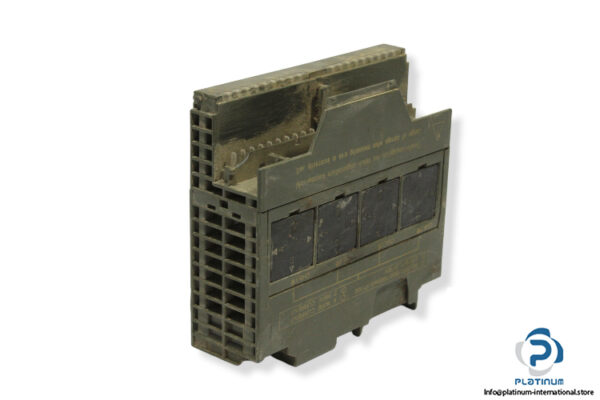

SIEMENS 6ES7 331-7KF01-0AB0 ANALOG INPUT MODULE

Manufacturer: SIEMENS

Type: Analog Input Module

Family: SIMATIC S7-300

Model: SM 331

MRN: 6ES7 331-7KF01-0AB0

Rated Load Voltage: 24 V DC­­­

No. of Analog inputs (AI): 8

Connected: RTD

TC Input Type: E,J,K,N

Voltage Input Ranges: +/-80 mV, +/-250 mV, +/-500 mV, +/-1 V,  1 … 5 V, +/-2.5 V, +/-5 V, +/-10 V

Current Input Ranges: +/-3.2 mA, +/-10 mA, +/-20 mA, 0/4 … 20 mA

Resolution: 15-Bit Resolution (9/12/14-Bit + Sign)

Integration Time Parameterizable: – 2.5/16.67/20/100 ms

Dimension: 120 x 125 x 40 mm
