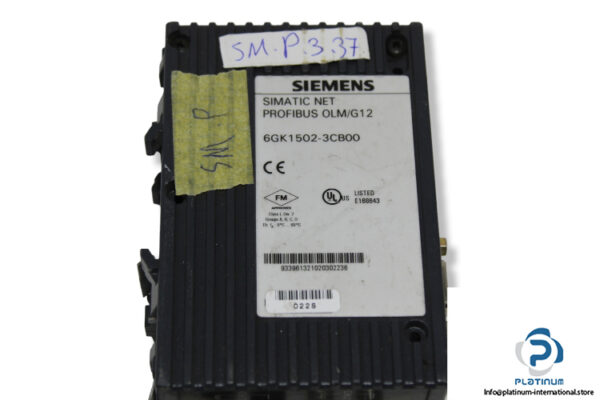

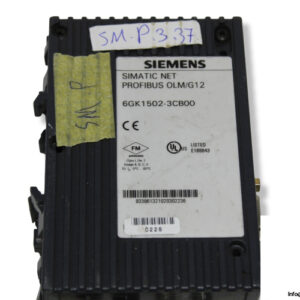

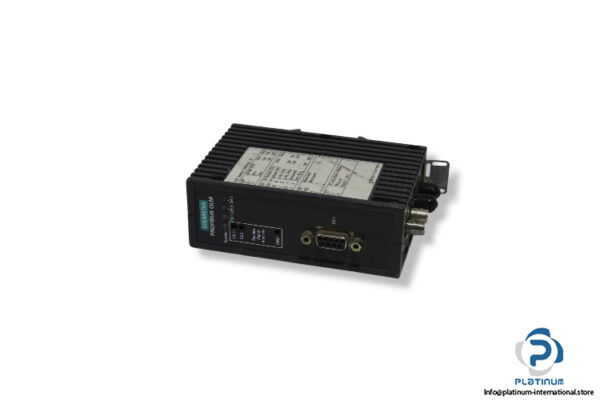

SIEMENS 6GK1 502-3CB00 PROFIBUS OLM/G12 MODULE
The Siemens PROFIBUS OLM/G12 module, model 6GK1 502-3CB00, is a high-performance optical link module designed for integration in industrial networks. Built under the Simatic NET family, it offers electrical and optical interfaces for enhanced communication stability and network expansion.
Manufacturer: Siemens
Type: Profibus OLM/G12 Module
Model: 6GK1 502-3CB00
REF NO: 022S
Family: Simatic NET
Technical Information
- Operating Voltage / of the Signaling Contacts: 24 V DC
- Operational Current / of the Signaling Contacts: 200 mA
- Number of Electrical/Optical Connections: 3
- Electrical Connection:
- For network components or terminal equipment: 9-pin Sub-D socket
- For measuring device: 2-pole terminal block
- For power supply and signaling contact: 5-pole terminal block
- Number of Channels: 3
- Number of Optical Interfaces / for Fiber Optic Cable: 2
- Design of Optical Interface / for Fiber Optic Cable: BFOC port
- Operating Temperature: 0 / 60 °C
- Protection Class: IP40
