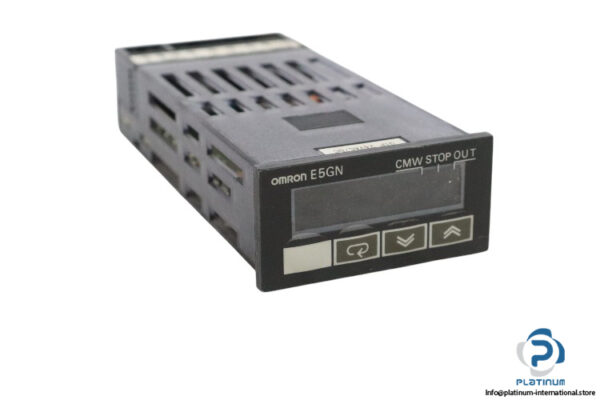

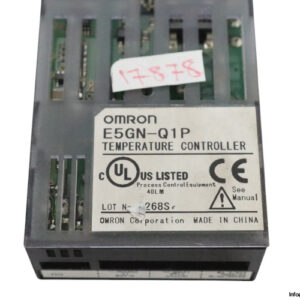

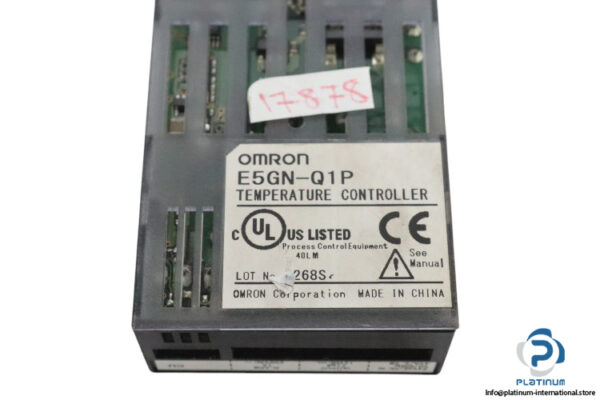

OMRON E5GN-Q1P DIGITAL TEMPERATURE CONTROLLER

Name: OMRON E5GN-Q1P DIGITAL TEMPERATURE CONTROLLER - Platinum International
SKU: 1064288
Availability: InStock

SKU: 1064288

In Stock: 4 items available

4 in stock

Add to Quote

Omron Digital Temperature Controller E5GNQ1P with voltage output (for driving SSR), relay output SPST-NO, and 7-segment digital display. Suitable for a wide range of temperature sensors, including thermocouples and platinum resistance thermometers.

SKU 1064288 Category Temperature Controllers Tags 7-Segment, Adjustable, Controller, Digital, Display, Industrial., INPUT, Management, Omron, Output, Platinum, RELAY, Resistance, Sensor, SPST-NO, SSR, Temperature, Thermocouple, thermometer, voltage

Description
Additional information

Description

Omron Digital Temperature Controller E5GNQ1P

Omron Digital Temperature Controller E5GNQ1P is a versatile and reliable controller designed for precise temperature management in industrial applications. Below are the key technical specifications:

Manufacturer: Omron
Type: Digital Temperature Controller
Model: E5GNQ1P

Technical Data:

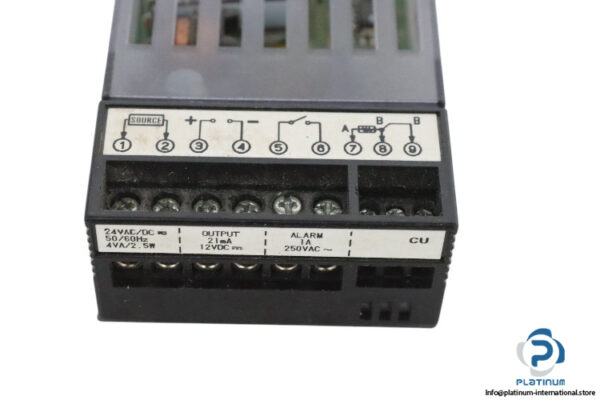

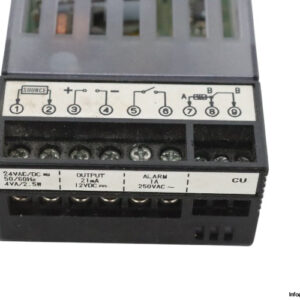

Power Supply Voltage: 24 V AC/DC
Frequency: 50/60 Hz
Power: 4 VA/2.5 W
Control Output: Voltage output (for driving SSR)
Output: Relay output SPST-NO, 250 VAC, 2 A
Output Voltage, Current: 12 VDC (PNP), max. load current: 21 mA
Alarm Output: SPST-NO, 250 VAC, 1 A
Setting Method: Digital setting using front panel keys

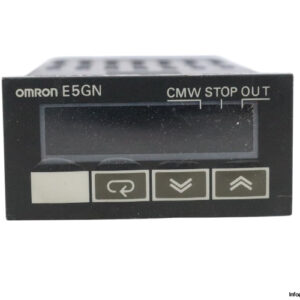

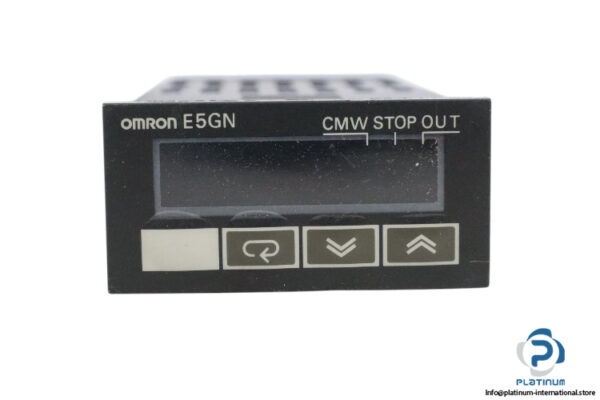

Indication Method: 7-segment digital display and single-lighting indicator
Sensor Input:
- Thermocouple: K, J, T, E, L, U, N, R, S, B
- Platinum resistance thermometer: Pt100, JPt100
Dimensions: 48 x 24 x 100 mm
Ambient Operating Temperature: -10 to 55°C
