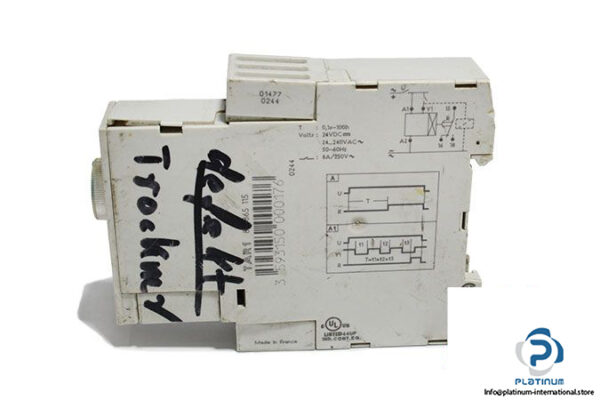

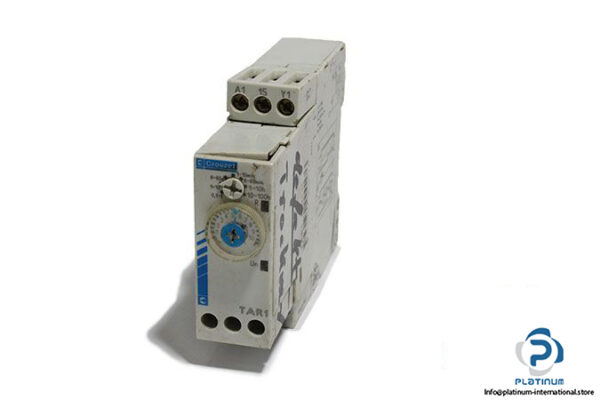

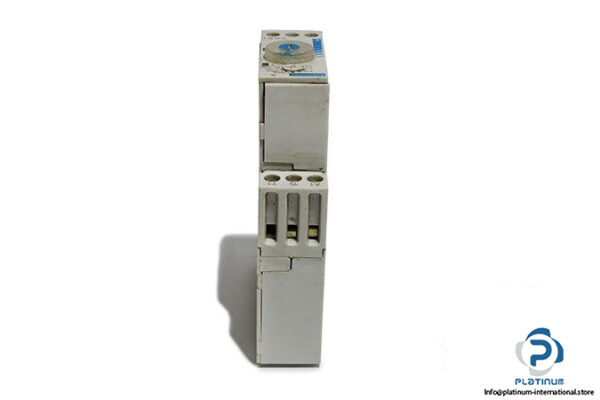

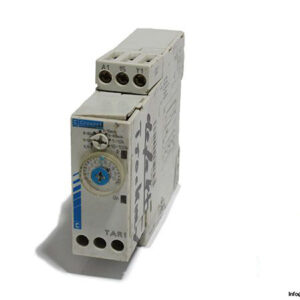

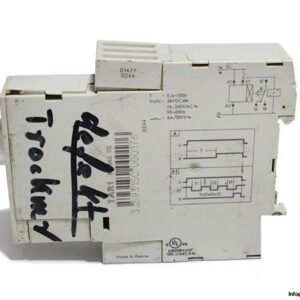

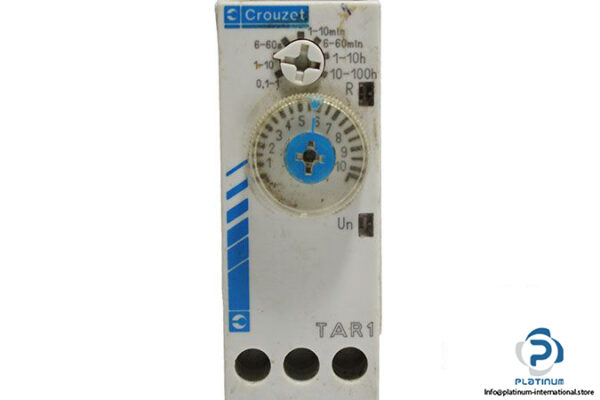

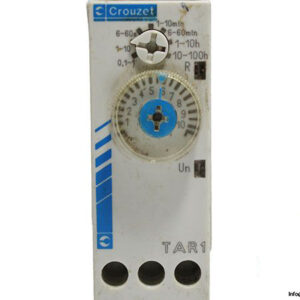

CROUZET TAR1 TIMER RELAY

Manufacturer: CROUZET

Type: Timer Relay Din Rail Mount 22.5 Mm

Model: TAR1

Part No.: 88865115

Supply Voltage: 24 VDC, 24 … 240 VAC

Frequency: 50/60 Hz

Contacts Voltage: 250 VAC

Current: 8 A

Time Range: 0.1 s … 100 hrs

Min. Pulse Duration Typically (Relay Version): 30 ms

Min. Pulse Duration Typically (Solid State Version): 50 ms

Pulse Duration Typically (Relay Version Under Load): 100 ms

Degree of Protection: IP50

Temperature Limits Use: -20 … +60°C

Dimensions: 22.5 X 100 X 78 mm
