BALLUFF BTL033H MAGNETOSTRICTIVE LINEAR POSITION SENSOR

LINEAR POSITION SENSOR

Balluff BTL033H is a magnetostrictive sensor with a 700 mm measuring range, high-resolution output, and rugged IP67-rated aluminum housing for precise industrial position feedback.

SKU: 1033126 Category: Tags: , , , , , , , , , , , , , , ,
In stock: 2 pcs
Very low
Hurry! Only 2 left in stock.
Add to quote

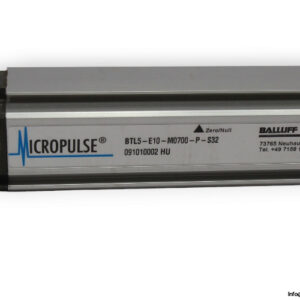

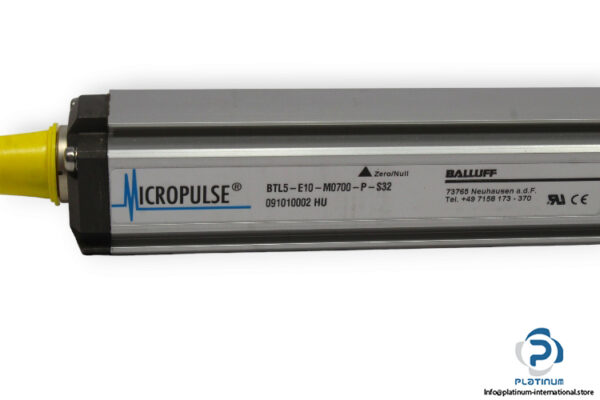

BALLUFF BTL033H LINEAR POSITION SENSOR

The Balluff BTL033H is a high-precision magnetostrictive linear position sensor designed for industrial environments requiring absolute position feedback. Built with robust materials and high IP protection, it ensures long-term reliability and precision in harsh conditions.

Manufacturer: BALLUFF
Type: Magnetostrictive Linear Position Sensor
Model: BTL033H
Part No: BTL5E10M0700PS32
Part No: 091010002 HU
Ref No: 131698

Technical Information

  • Transducer: MICROPULSE transducer
  • Resolution: 0.2 µA
  • Rated Supply Voltage: 20 / 28 V DC
  • Rated Current Consumption Max.: 150 mA
  • Null Point: 73.0 mm
  • Measuring Range: 700 mm
  • Connection: Axial Connector, M16 x 0.75, 8-Pin
  • Housing Material: Aluminum
  • Protection Class: IP67
  • Ambient Temperature: -40…85 °C
Weight1,68 kg
