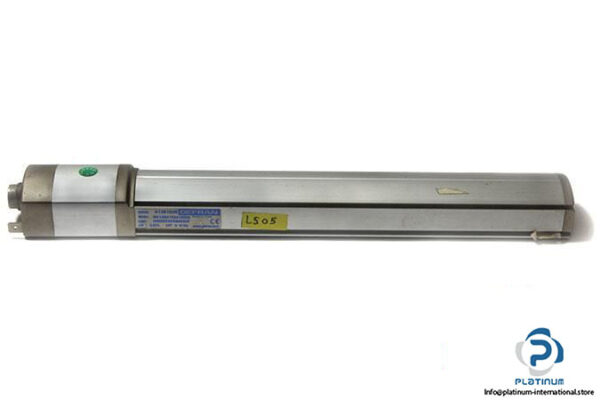

GEFRAN MK1AB0150A10000 LINEAR POSITION TRANSDUCER
The GEFRAN MK1AB0150A10000 is a high-precision magnetostrictive linear position transducer designed for accurate displacement measurement in industrial automation environments. This absolute-type sensor delivers a fast update rate and outstanding linearity in a compact and robust IP67-rated design.
Manufacturer: GEFRAN
Type: Linear Position Transducer (Magnetostriction)

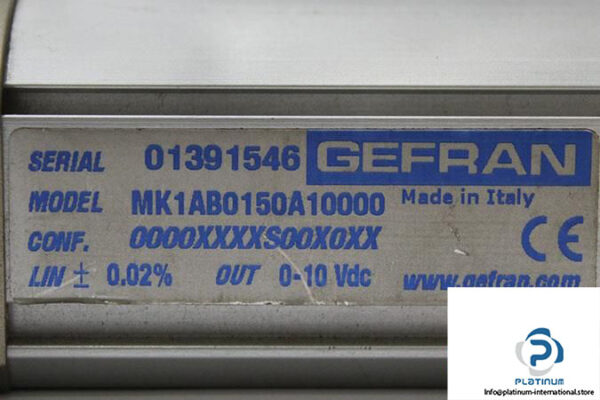

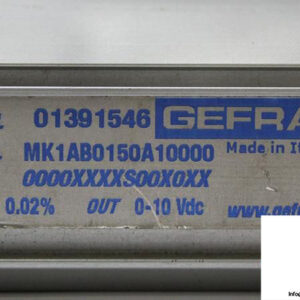

Model: MK1AB0150A10000
S No: 01391546
Conf No: 0000XXXXS00X0XX
Technical Information
- Main Characteristic: Absolute Transducer
- Electrical Stroke: 150 mm
- Power Supply: 24 VDC
- Output Signal: 0 / 10 VDC
- Linearity: 0.02%
- Measurement Taken: Displacement
- Type of Magnet: Sliding Cursor, Separate Floating Magnet
- Update Time: ‰¤ 1 ms
- Resolution: ‰¤ 0.1 mV

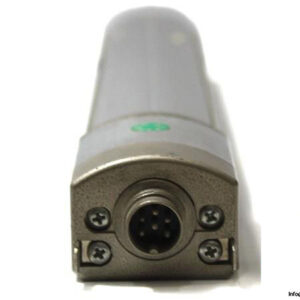

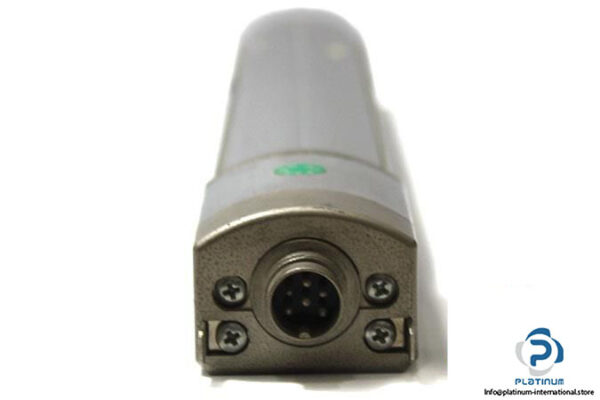

- Electrical Connection: 6-pole Output Connector (DIN 45322)
- Protection Class: IP67
