Used

GEFRAN MK4-A-B-0400-E-LINEAR POSITION TRANSDUCER

📋
SKU: 966697

✔ In Stock: 1 items available

1 in stock


LINEAR POSITION TRANSDUCER

GEFRAN MK4-A-B-0400-E features ONDA technology with 0.02% linearity, 400 mm stroke, and 4“20 mA output. Designed for industrial applications with 24 VDC supply and IP67 protection.

Description

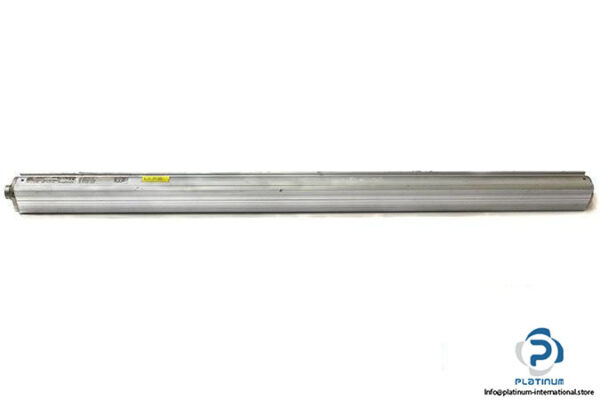

GEFRAN MK4-A-B-0400-E LINEAR POSITION TRANSDUCER

The GEFRAN MK4-A-B-0400-E is a high-precision linear position transducer that utilizes ONDA technology for accurate and reliable performance in industrial automation environments. With excellent linearity and IP67 protection, it ensures dependable operation in harsh conditions.

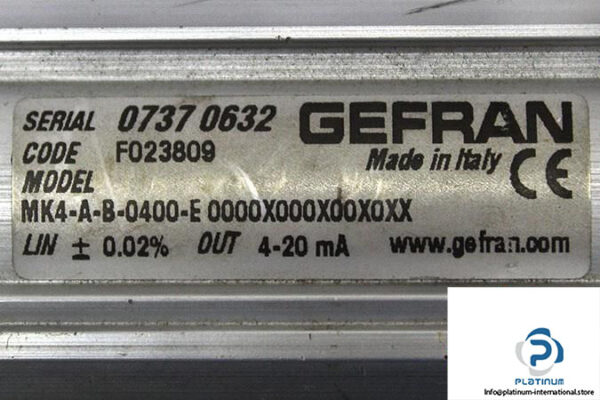

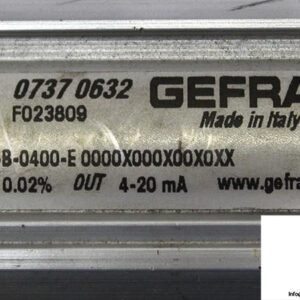

Manufacturer: GEFRAN
Type: Linear Position Transducer
Model: MK4-A-B-0400-E
Code: F023809
S No.: 0737 0632

Technical Information

  • Main Characteristic: ONDA technology
  • Linearity: 0.02%
  • Power Supply: 24 VDC
  • Output Signal: 4 / 20 mA
  • Electrical Stroke: 400 mm
  • Sampling Time: 1 ms
  • Maximum Consumption: 70 mA
  • Resolution: 16 Bit

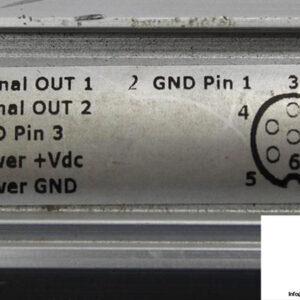

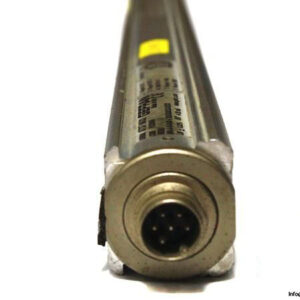

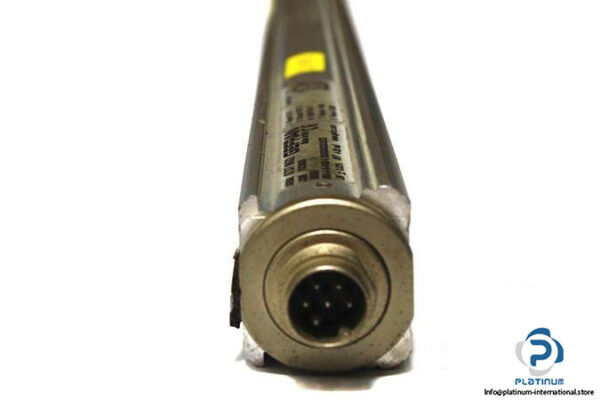

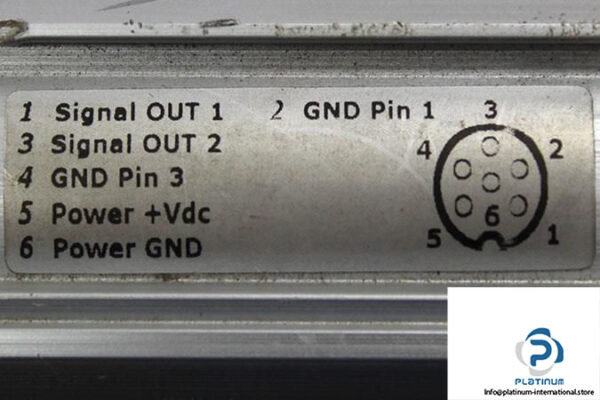

  • Electrical Connection: DIN45322 6-pin connector output
  • Protection Class: IP67
  • Temperature Range: -30 / 75°C
