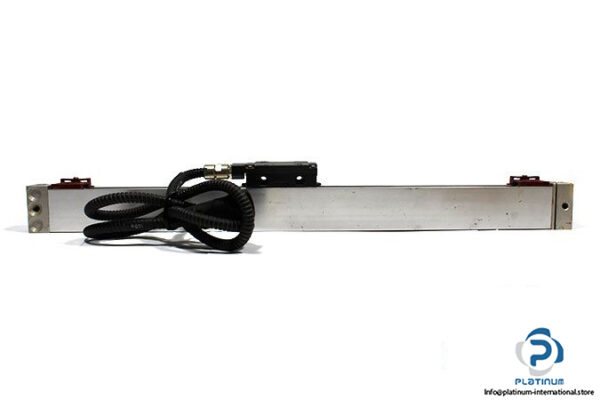

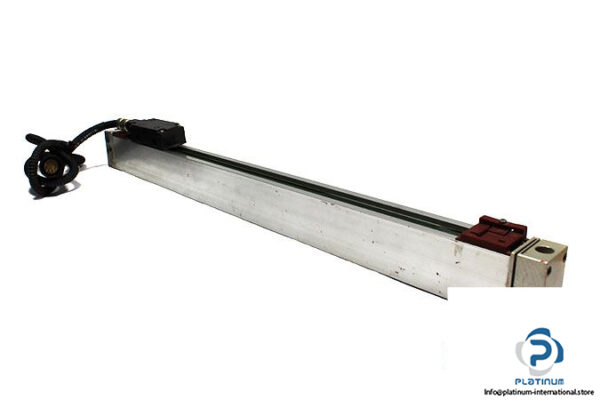

HEIDENHAIN LS 703 LINEAR SCALE ENCODER
The Heidenhain LS 703 is a precision linear scale encoder engineered for high-accuracy motion control and position feedback. It is ideal for CNC machines and automated equipment requiring exact linear displacement readings.
Manufacturer: Heidenhain
Type: Linear Scale Encoder

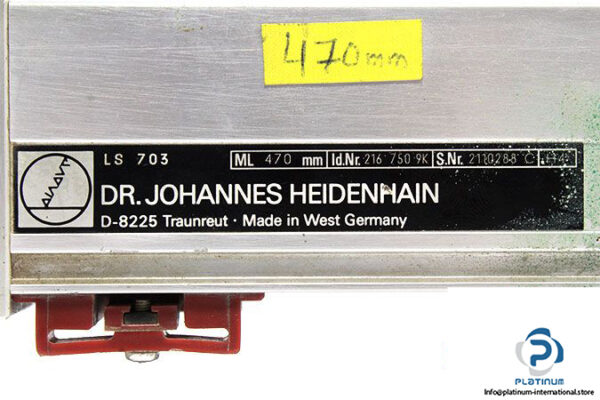

Model: LS 703
ID.Nr.: 216 750 9K
N: 2110288 C

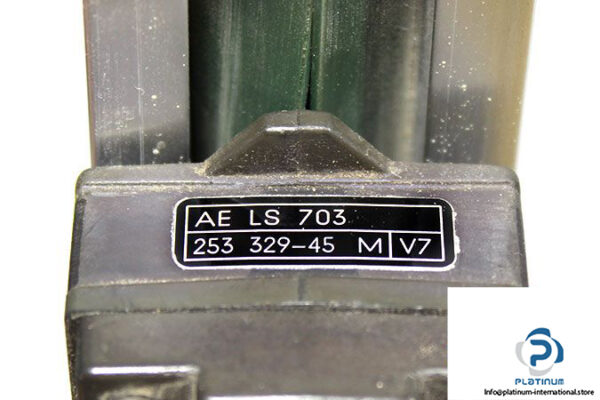

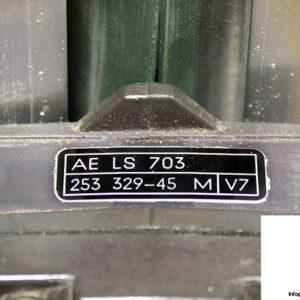

Scanning Unit
Model: AE LS 703
ID.Nr.: 253 329 45 M
Technical Information
- Measuring Length: 470 mm
- Electrical Connection: Connector 9-Pin
- Dimensions: 36 x 73 x 620 mm
