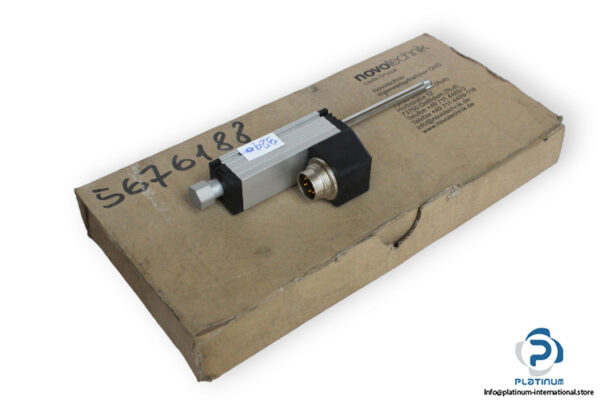

NOVOTECHNIK TRS-0025 SPRING-LOADED LINEAR POTENTIOMETER
The Novotechnik TRS-0025 is a high-precision spring-loaded linear potentiometer, engineered for applications requiring accurate linear position sensing. Designed with robust build quality and compact form, it ensures reliable feedback in demanding environments.
Manufacturer: Novotechnik
Type: Spring-Loaded Linear Potentiometer

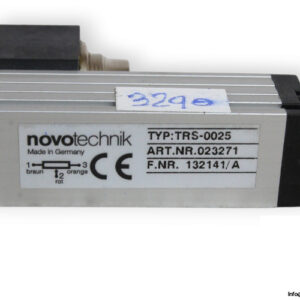

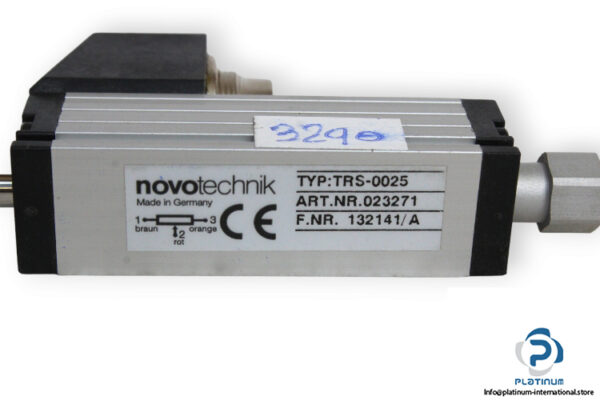

Model: TRS-0025
Art No.: 023271
F No.: 132141/A
Technical Information
- Overall Length: 63 mm
- Defined Electrical Range: 25 mm
- Operating Voltage Max.: 42 V
- Nominal Resistance: 1 kohm
- Electrical Connection: 5-pin round connector
- Temperature Range: -30 / +100 °C
- Protection Class: IP 40
