TEMPOSONICS RPS0300MD581U401 LINEAR POSITION SENSOR
This high-precision linear position sensor by Temposonics is engineered for demanding industrial applications requiring accurate displacement measurement. It provides high-resolution feedback with robust protection and a durable design.
Manufacturer: TEMPOSONICS
Type: LINEAR POSITION SENSOR
Model: RPS0300MD581U401

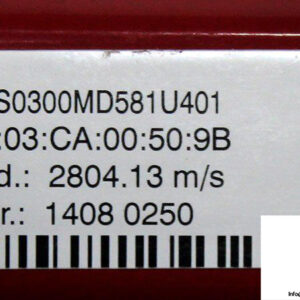

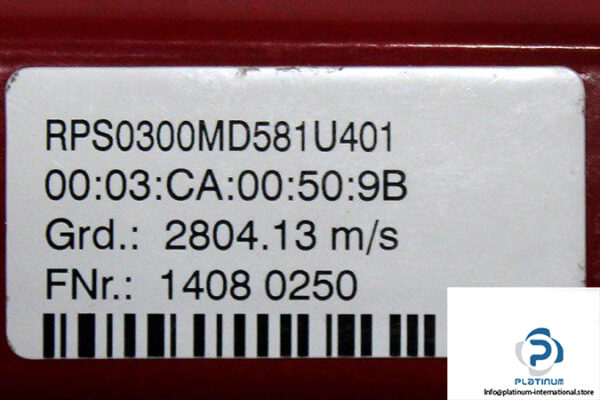

Ref No.: 1408 0250 / 00:03:CA:00:50:9B
Technical Information
- Stroke Length: 300 mm
- Ordering Steps: 25 mm
- GRD: 2804.13 M/s

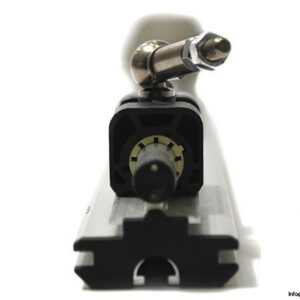

- Design: Magnet slider, joint at top
- Input Voltage: 24 VDC
- Resolution: 16 bit, 0.0015%

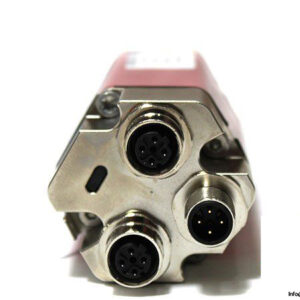

- Electrical Connection: 6 pin male Connector
- Protection Class: IP 65
- Temperature Range: -0 / 75°C
