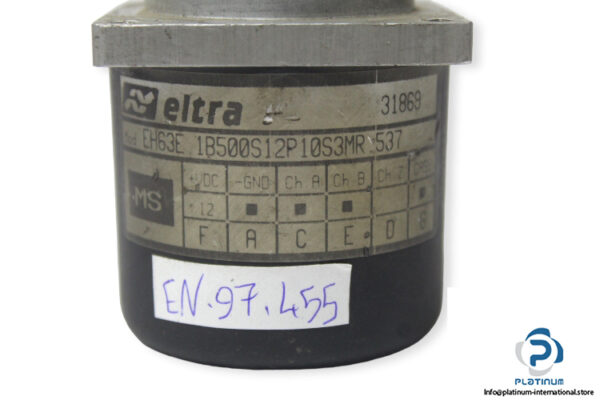

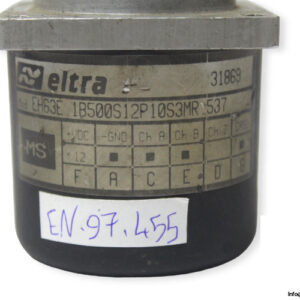

ELTRA EH63E 1B500S12P10S3MR.537 INCREMENTAL ENCODER

The Eltra EH63E series incremental encoder is built to deliver precise position feedback in industrial automation systems. With a compact design, high resolution, and robust materials, it is an ideal choice for motion control applications.

Manufacturer: Eltra
Type: Incremental Encoder
Model: EH63E 1B500S12P10S3MR.537
Ref No.: 31869
Principle of Operation: Incremental

Technical Information

• Body Dimension: 63 mm
• Version: 537
• Type of Flange: mod.EH-EL 63 E
• Shaft Diameter: 10 mm
• Shaft Speed: 3000 rpm
• Bearings: 2 Ball Bearings
• Output Type: PUSH PULL
• Resolution: 500 ppr
• Supply Voltage: 12 V
• Operating Temperature: 0 / +60 °C
• Degree of Protection: IP66
• Shaft Material: Stainless Steel AISI303
• Body Material: Aluminium UNI 5076
• Housing Material: PA 66 reinforced with fiberglass
