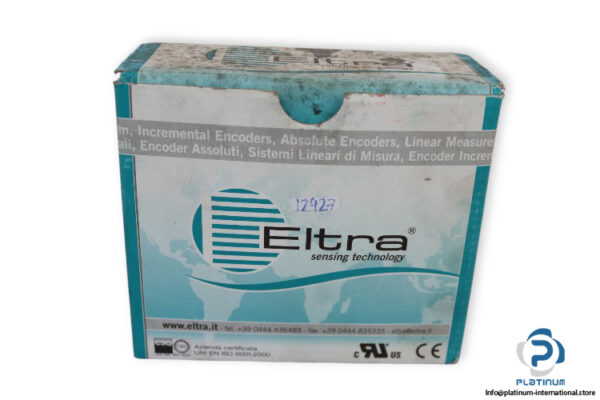

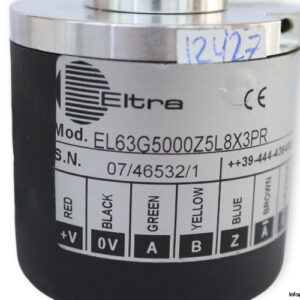

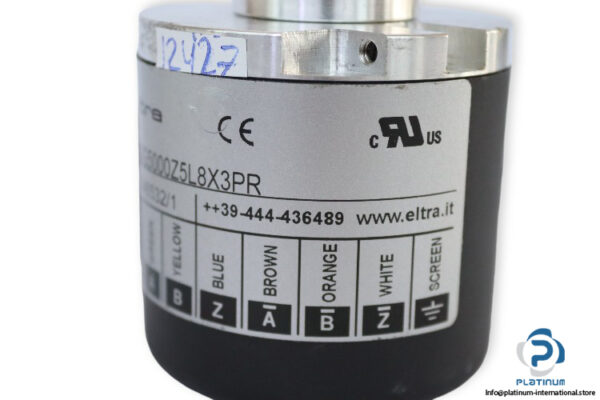

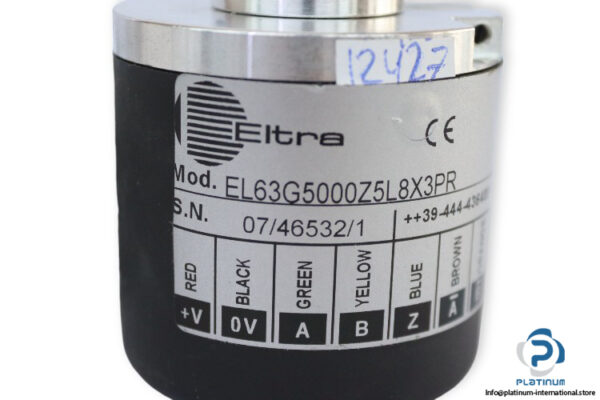

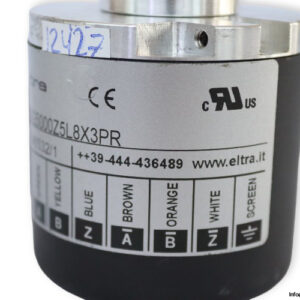

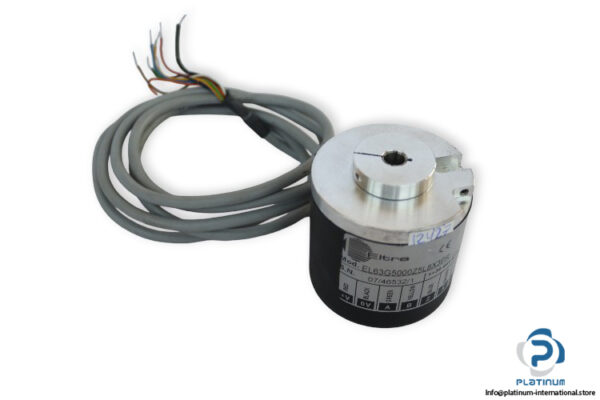

ELTRA EL63G5000Z5L8X3PR INCREMENTAL ENCODER
The ELTRA EL63G5000Z5L8X3PR is a high-resolution incremental encoder designed for precise rotary motion detection in automation and control systems. Its compact size and durable build make it ideal for integration in demanding industrial environments.
Manufacturer: ELTRA
Type: Incremental Encoder
Model: EL63G5000Z5L8X3PR
Serial No.: 07/46532/1
Technical Information
- Power Supply: 5 V DC
- Operating Principle: Incremental
- Shaft Type: Hollow Shaft
- Mounting Type: Torque Pin
- Electronic Interface: Line Driver
- Resolution: 5000 ppr
- Bore Diameter: 8 mm
- Enclosure Rating: IP54
- Max Rotation Speed: 3000 rpm
- Output Type: Cable
- Direction Type: Radial
- Construction Size (Diameter): 63.5 mm
- Max Output Frequency: 250 kHz
- Measurement Type: Rotary
- Sensor Type: Optical
- Operating Temperature: -10 / +60°C
