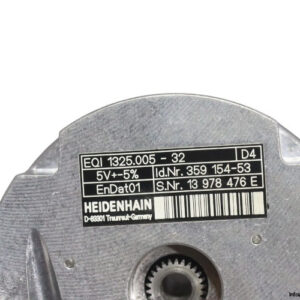

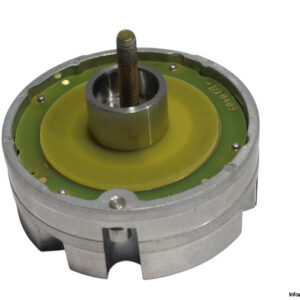

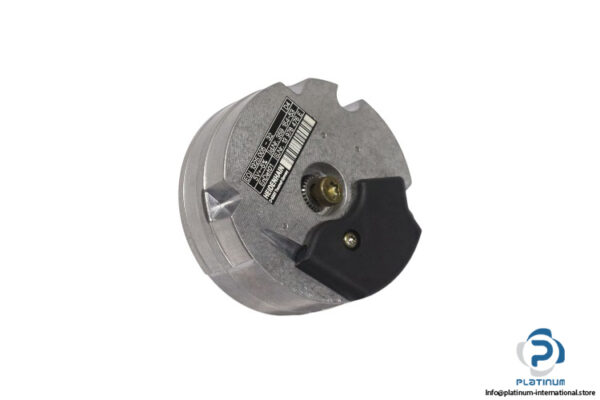

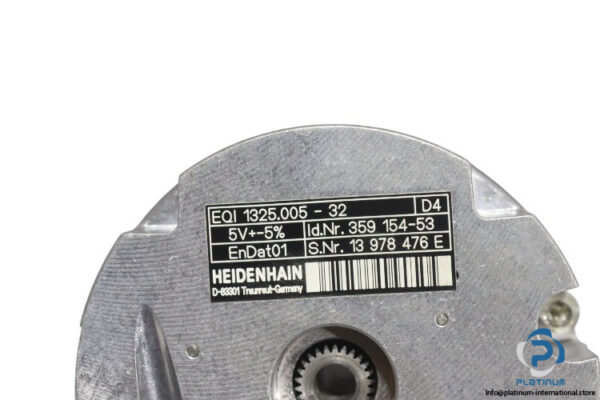

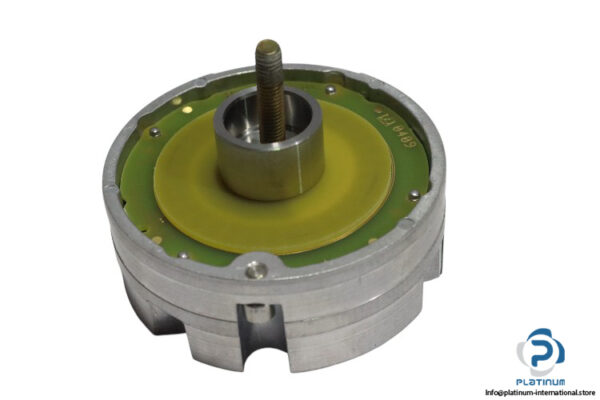

HEIDENHAIN EQI 1325.005-32 Rotary Encoder

The HEIDENHAIN EQI 1325.005-32 is a high-performance rotary encoder engineered for precise motion control in demanding automation environments. Designed with EnDat01 protocol and a tapered shaft interface, it ensures accurate position feedback and fast response time.

Manufacturer: HEIDENHAIN

Type: Rotary Encoder

Model: EQI 1325.005-32

ID No.: 359 154-53

Technical Data:

• Ordering Designation: EnDat01
• Current Consumption: 5V
• Speed: 12,000 RPM
• Calculation Time: 9 µs
• Electrical Connection: 12 Pin
• Shaft: Tapered shaft, 9.25 mm
• Max Operating Temperature: 115 °C
• Degree of Protection: IP40
