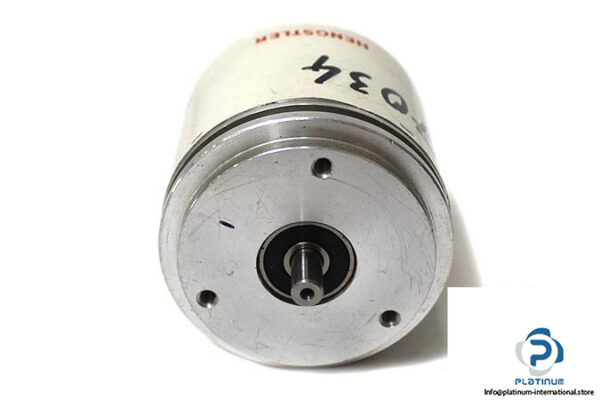

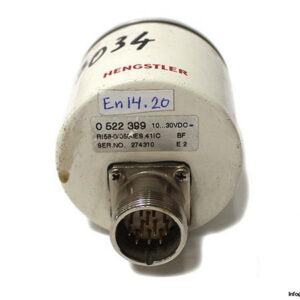

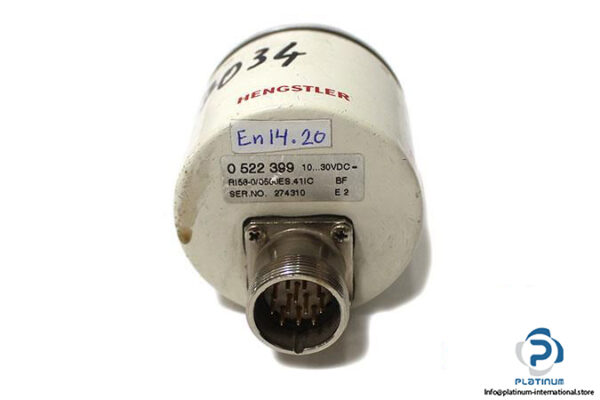

HENGSTLER RI 58-O/0500ES.41IC BF INCREMENTAL ENCODER

Engineered for precision and durability, the HENGSTLER RI 58-O/0500ES.41IC BF Incremental Encoder offers reliable performance in demanding industrial environments. Its compact synchro flange design and push-pull output make it ideal for automation and motion control systems.

Manufacturer: HENGSTLER
Type: Incremental Encoder
Model: RI 58-O/0500ES.41IC BF

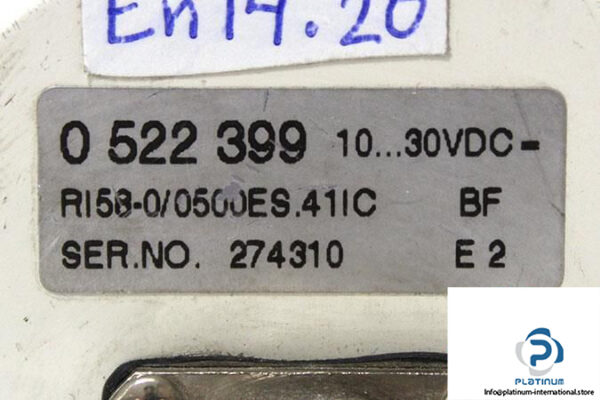

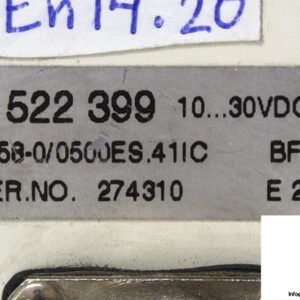

Part No.: 0522399
Serial No.: 274310 E2

Technical Information

• Flange Type: Synchro Flange
• Shaft Type: Solid Shaft
• Shaft Diameter: 6 mm
• Resolution: 500 pulses per revolution (PPR)
• Voltage Supply: 10 / 30 V DC
• Output Circuits: Push-Pull (complementary)
• Output Frequency: 0 / 100 KHz
• Connection Type: M23 Connector (Conin), Axial
• Protection Class: IP65/64
• Temperature Range: -10 / 70 °C
