Used

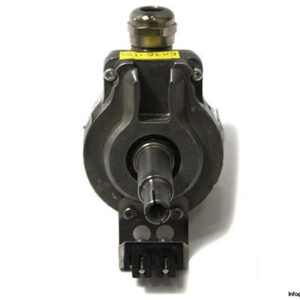

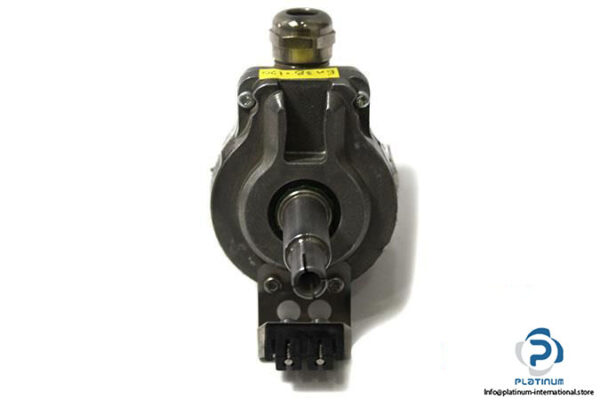

SEW ES2C INCREMENTAL ENCODER

📋
SKU: 966020

✖ Out of Stock

350,00$

Out of stock


INCREMENTAL ENCODER

SEW OG 72 DN 1024 CI incremental encoder with 1024 PPR resolution, 24 VDC supply, and HTL signal output. IP66 protection, suitable for high-speed applications up to 10000 rpm.

Description

SEW OG 72 DN 1024 CI INCREMENTAL ENCODER

The SEW OG 72 DN 1024 CI is a high-resolution incremental encoder designed for demanding industrial automation applications. With a resolution of 1024 PPR, HTL signal output, and robust IP66 protection, this encoder ensures accurate feedback in harsh environments.

Manufacturer: SEW
Type: Incremental Encoder
Model: OG 72 DN 1024 CI
Designation: ES2C
No.: 185867X
SN: 1617309
Installed To: DT71-DV225, CT71-200CV
Reference No.: 03 334
Shaft Design: Spread shaft

Technical Information

  • Voltage Supply: 24 VDC
  • Resolution: 1024 Pulse per Revolution (PPR)
  • Signal Output: HTL
  • Max Speed: 10000 rpm
  • Max. Pulse Frequency: 120 kHz
  • Output Connection: Terminal box
  • Protection Class: IP 66
