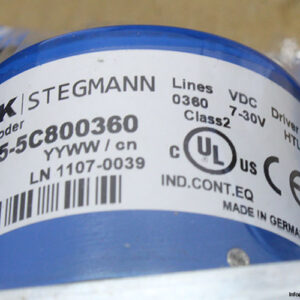

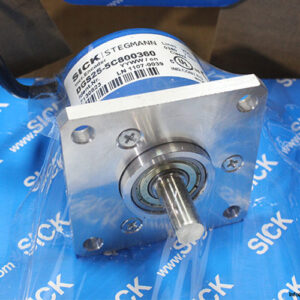

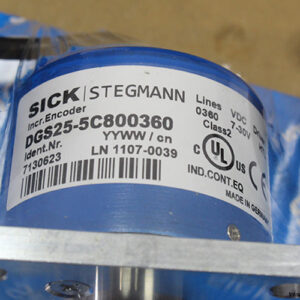

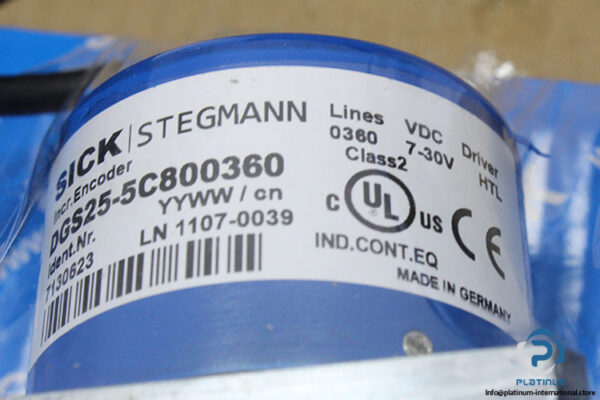

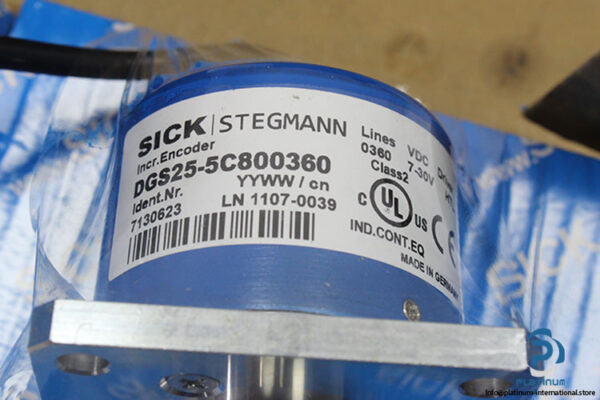

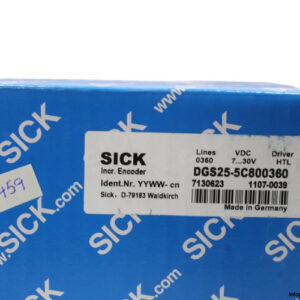

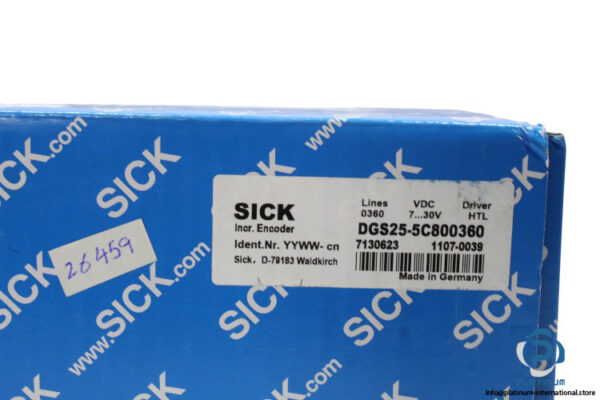

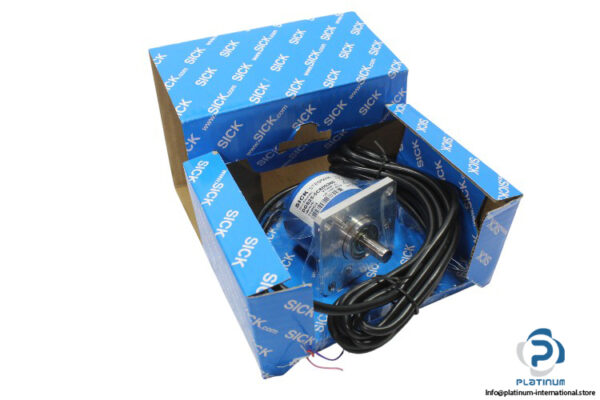

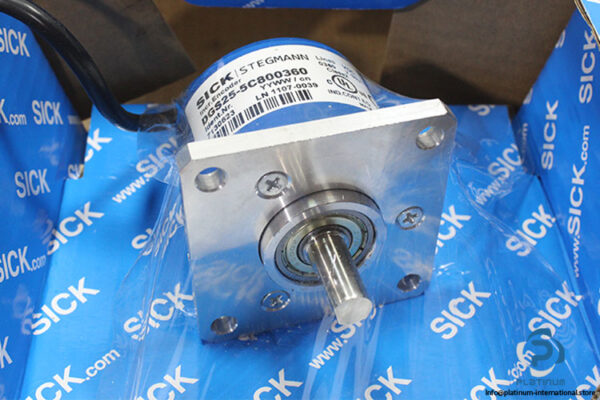

Sick/Stegmann DGS 25-5C800360 “ Incremental Encoder

The Sick/Stegmann DGS 25-5C800360 incremental encoder offers high precision in motion control applications. With a 360 pulse per revolution (PPR) resolution, it is designed to meet demanding industrial standards, providing reliable feedback for position and speed measurement systems.

• Manufacturer: Sick/Stegmann
• Type: Incremental Encoder
• Model: DGS 25-5C800360
• ID. No.: 7130623
• Ref. Code: LN 1107-0039

Technical Information:

• Flange Type: Square Flange
• Shaft Type: Solid Shaft
• Voltage Range: 7 to 30 V DC
• Operating Current Range at No Load: 120 mA
• Shaft Diameter: 10 mm
• Resolution: 360 pulse per revolution (PPR)
• Electrical Interfaces: Line drivers (HTL)
• Connection: Axial Connector MS 7-pin
• Protection Class: IP66
• Max. Output Frequency: 200 kHz
• Max. Operating Speed: 3,000 rpm
• Max. Shaft Loading: 3,000 rpm
• Reduced Shaft Loading: 5,000 rpm
• Startup Torque: With shaft seal: 5 oz-in (3.5 Ncm); Without shaft seal: 1.5 oz-in (1.1 Ncm)
• Working Temperature Range: 0 to 70 °C
