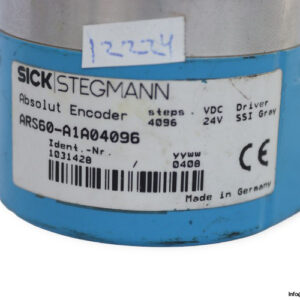

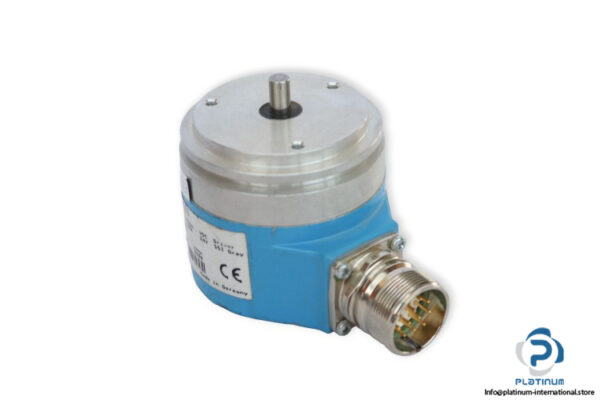

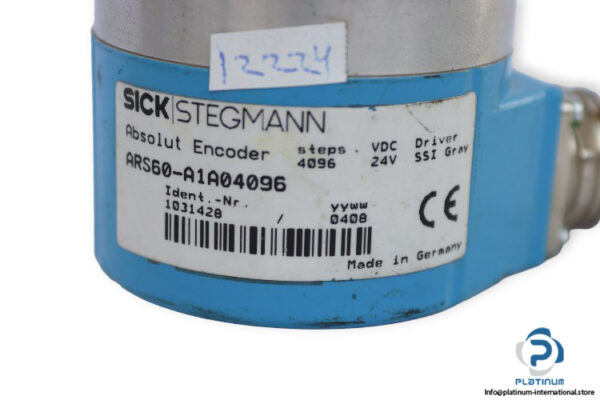

SICK STEGMANN ARS60-A1A04096 ABSOLUTE ENCODER

Manufacturer: SICK|STEGMANN
Type: Absolute Encoder
Model: ARS60A1A04096
Part No.: 1031428

Mechanical Design: Servo Flange, Solid Shaft
Number of Steps Per Revolution (Resolution Max.): 4096 (12 bit)
Voltage Supply: 24 V DC
Operating Current: 60 mA
Operating Speed:
≤ 6,000 min^-1 with Shaft Seal
≤ 10,000 min^-1 without Shaft Seal
Communication Interface: SSI
Initialization Time: 80 ms

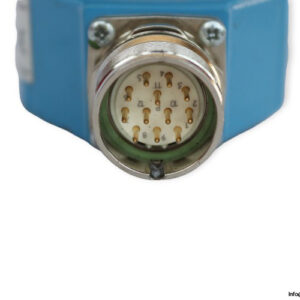

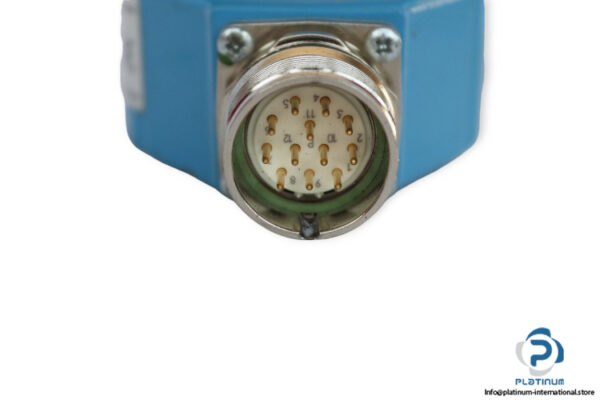

Connector Type: Male Connector, M23, 12-Pin, Radial
Material: Aluminum Die Cast
Protection Class: IP65
Temperature: -20 … 85 °C
Shaft Diameter: 6 mm
Encoder Diameter: 59.5 mm
Dimensions: 54 x 59.5 x 90 mm
