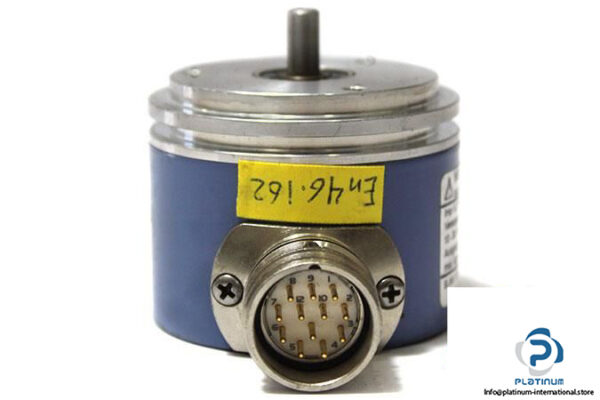

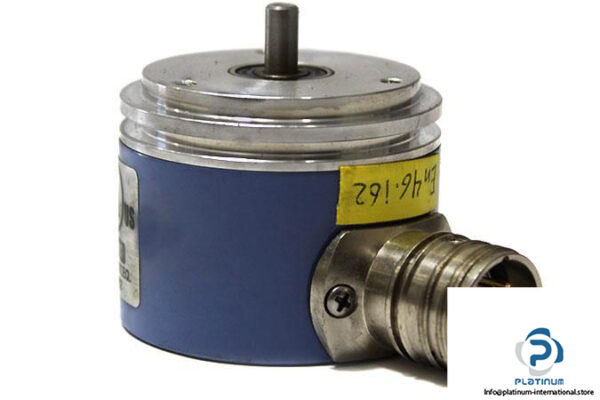

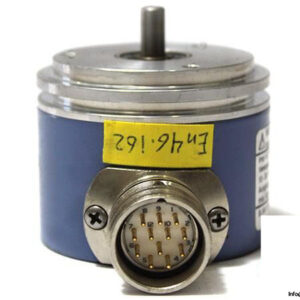

WACHENDORFF WDG-58A-30-ABN-245-S5R-E25 INCREMENTAL ENCODER
The WACHENDORFF WDG-58A series encoder is a robust and precise incremental encoder designed for high-resolution applications in industrial automation. With durable construction and high-frequency signal output, it ensures stable and accurate feedback even in demanding environments.
Manufacturer: WACHENDORFF
Type: Incremental Encoder

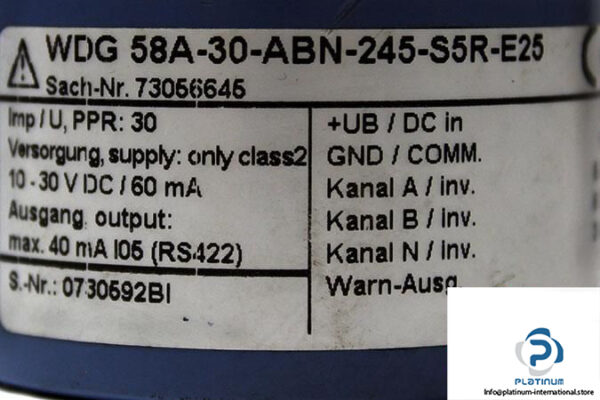

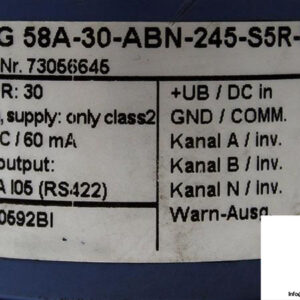

Model: WDG-58A-30-ABN-245-S5R-E25
Sach No.: 73056645
S/N: 0730592BI
Technical Information

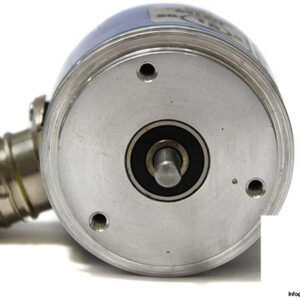

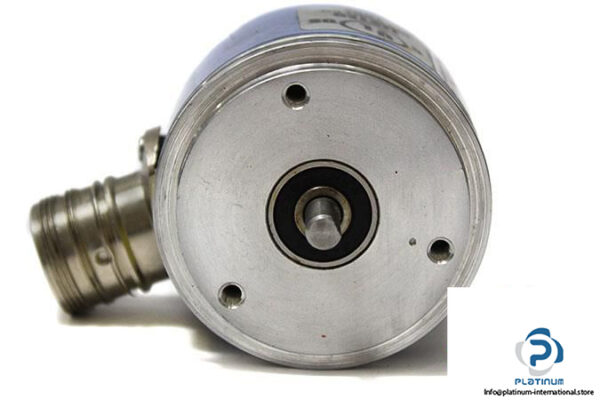

- Flange Design: Synchro Flange
- Shaft Design: Solid Shaft
- Shaft Diameter: 6 mm
- Voltage Supply: 10 / 30 VDC
- Resolution: 30 Pulse Per Revolution (PPR)
- Signal Output: TTL (RS 422)
- Channels: AB, ABN (SIN; AB)
- Connections Type: Connector, M23, 12-pin, radial
- Pulse Frequency: 200 kHz
- Protection Class: Protection to IP67, Shaft Sealed to IP65
- Output Current: 40 mA
