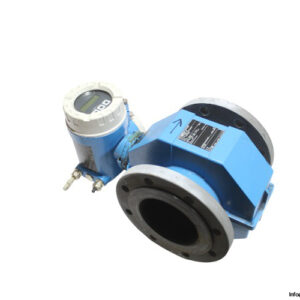

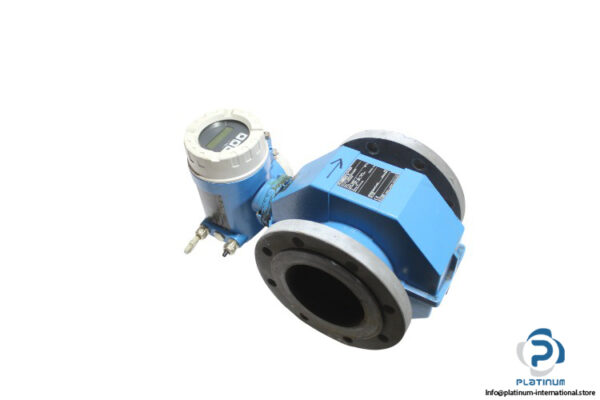

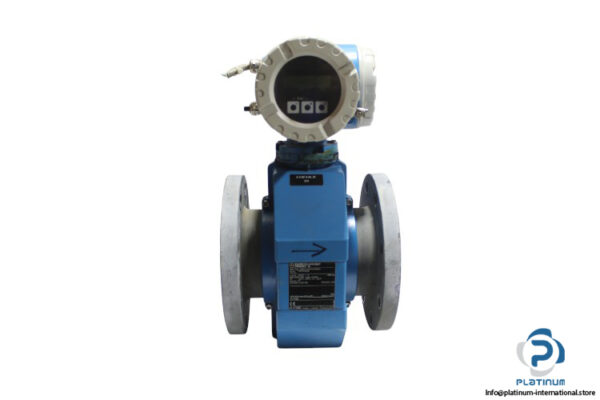

Endress+Hauser 50W1Z-UC0A1AA0ABAW Electromagnetic Flow Meter
The Endress+Hauser 50W1Z-UC0A1AA0ABAW Electromagnetic Flow Meter is designed for accurate flow measurement with advanced features such as Empty Pipe Detection (EPD/MSU). It provides reliable results across a wide range of flow rates and fluid temperatures.
Manufacturer: Endress+Hauser
Model: 50W1Z-UC0A1AA0ABAW
Type: Electromagnetic Flow Meter
Serial No.: 74071C19000
Technical Information:

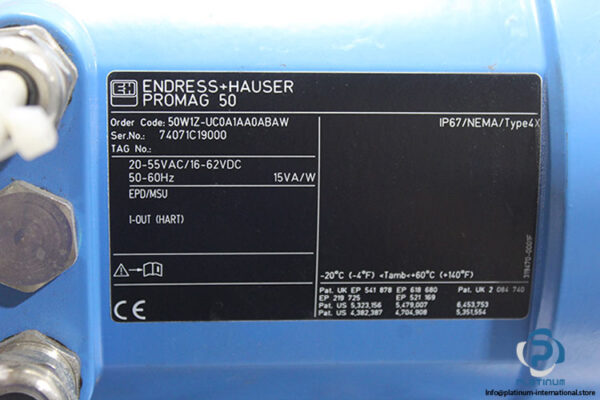

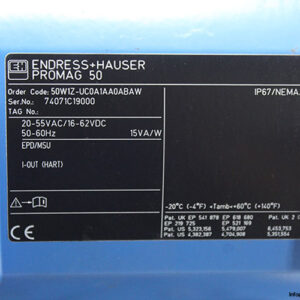

- Transmitter Name: PROMAG 50
- Power Supply: 20 to 55 V AC / 16 to 62 V DC
- Frequency: 50 to 60 Hz
- Power Consumption: 15 VA/W
- Additional Information: EPD/MSU, with Empty Pipe Detection
- Outputs Available: I-OUT (HART), with current output (HART)
- Temperature Range: -20 to +60 °C
- Protection: IP67 / NEMA / Type 4X
- Recommended Flow: 220 to 7500 dm³/min

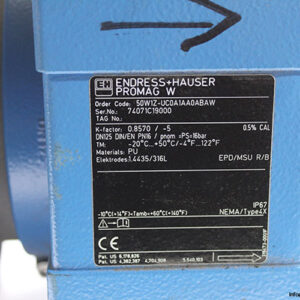

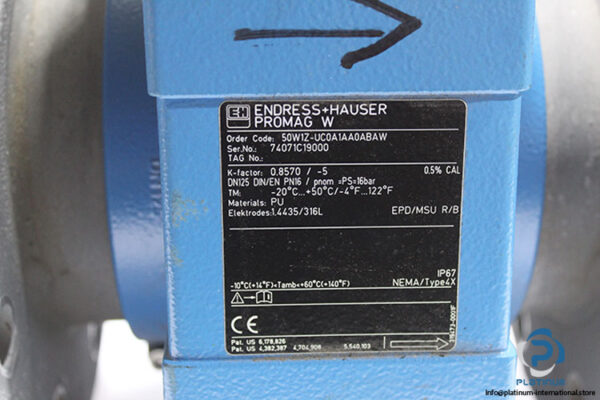

- Sensor Name: PROMAG W
- Calibration Factor with Zero Point: 0.8570 / -5
- Nominal Diameter / Pressure Rating: DN 125 / 16 (PS, 16bar)
- Fluid Temperature Range: -20 to +50 °C
- Materials: Lining / Measuring Electrodes: PU / 1.4435 / 316L
- Calibration Tolerance: 0.5% CAL
- Flow Direction: Left to right
- Permitted Ambient Temperature Range: -10 to +60 °C
