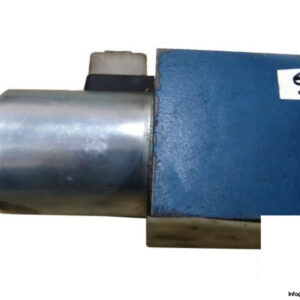

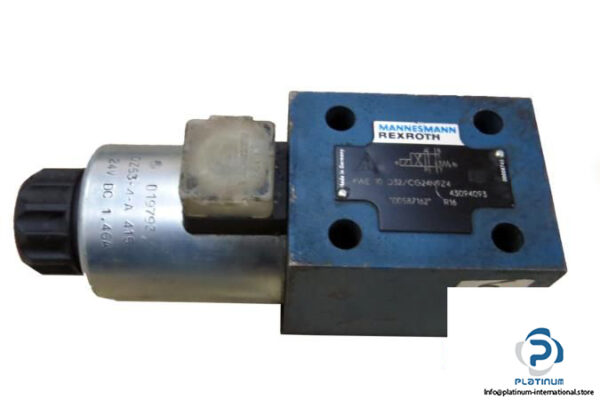

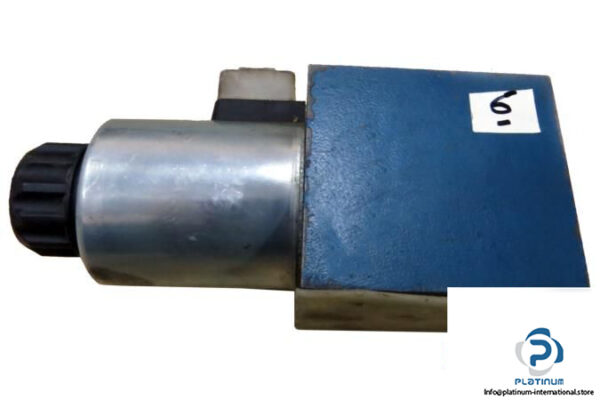

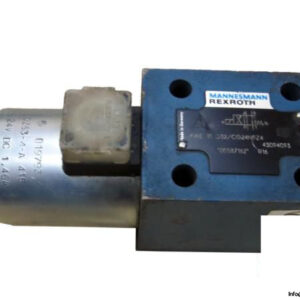

Manufacturer: REXROTH
Type: Directional Control Valve

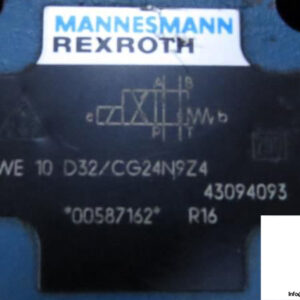

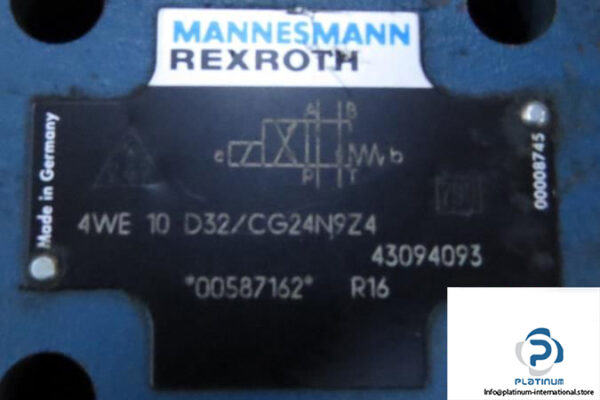

Model: 4WE 10 D32/CG24N9Z4
MNR: R900587162
Standard nominal flow rate: 120 I/min
Maximum operating pressure – Input: Port A, B, P= 315 bar, Port T= 160 bar
Hydraulic fluid temperature range: -30 … +80 °C
Seals: NBR
Weight: 4.8 kg
| Model | 4WE 10 D32/CG24N9Z4 |
|---|---|
| MNR | R900587162 |
| Condition | New |
| Shelf No. | 201211 |
