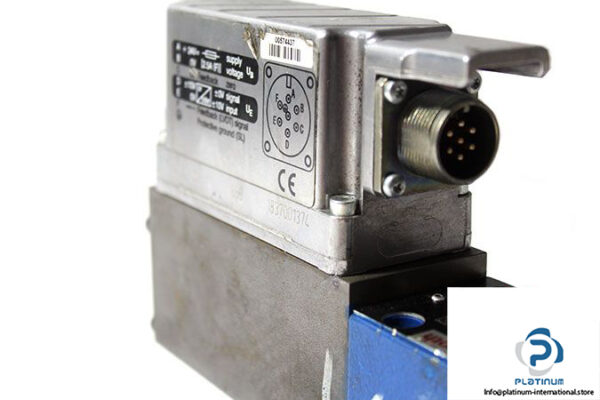

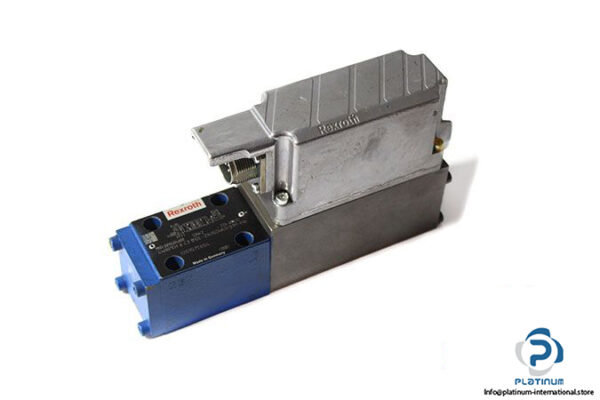

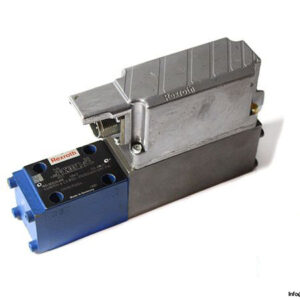

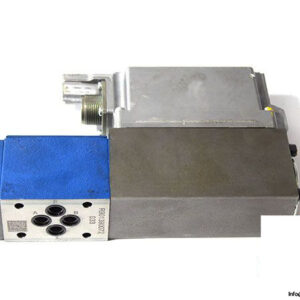

REXROTH 4WRPEH6C3B12L2XG24K0A1M816 SERVO SOLENOID DIRECTIONAL CONTROL VALVE
The Rexroth 4WRPEH 6 C3 B12L-2X/G24K0/A1M-816 is a high-performance servo solenoid directional control valve with integrated position control and OBE (On-Board Electronics). Designed for precision hydraulic control, it ensures accurate and reliable operation in demanding industrial applications.
Manufacturer: REXROTH
Type: Servo Solenoid Directional Control Valve
Model: 4WRPEH 6 C3 B12L-2X/G24K0/A1M-816
MNR: 0 811 404 608
Technical Information
- Fluid: Oil
- Size: NG6
- Actuation: Control solenoid with position control, OBE
- Working Pressure Ports (P, A, B): 315 bar
- Working Pressure Port (T): 250 bar
- Nominal Flow Rate: 12 l/m
- Viscosity Range: 20 / 100 mm²/s
- Connection: Sub-plate
- Voltage Supply: 24 V DC
- Ambient Temperature Range: -20 / 50 °C
