Used

CAMOZZI 40M2L080A0050 ISO CYLINDER

📋
SKU: 1061717

✔ In Stock: 1 items available

1 in stock


ISO Cylinder

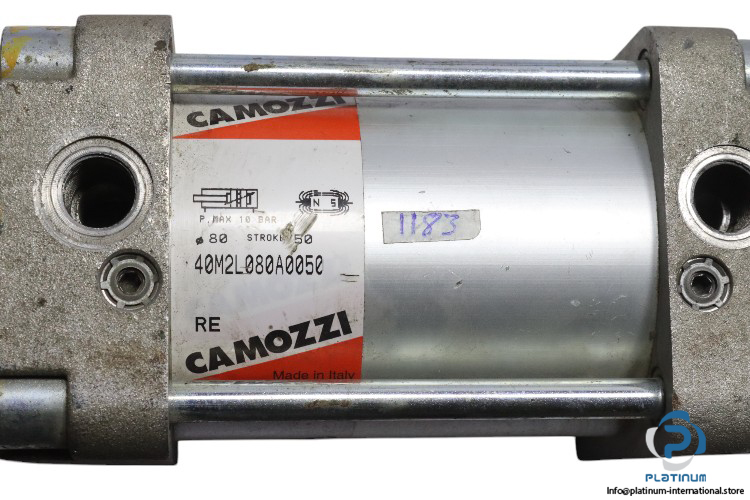

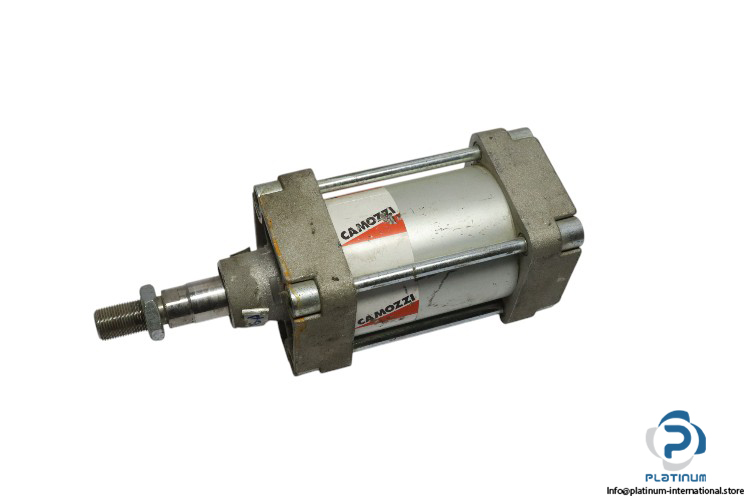

CAMOZZI ISO Cylinder 40M2L080A0050
is designed for pneumatic systems, featuring 80 mm bore diameter, 50 mm stroke, and a maximum pressure of 10 bar. It has a square shape, male piston rod end, and a G 3/8 pneumatic connection.

Description

CAMOZZI ISO Cylinder 40M2L080A0050

The CAMOZZI ISO Cylinder 40M2L080A0050 is a high-performance pneumatic cylinder designed for various industrial applications. With a bore diameter of 80 mm and stroke of 50 mm, this double-acting cylinder ensures reliable operation under pressures up to 10 bar.

Manufacturer: CAMOZZI

Model: 40M2L080A0050

Technical Specifications

  • Media: Compressed Air
  • Bore Diameter: 80 mm
  • Stroke: 50 mm
  • Bore x Stroke: 80 x 50 mm
  • Rod Diameter: 25 mm
  • Frame Dimensions: 97 x 210 mm
  • Pneumatic Connection: G 3/8
  • Pressure Max.: 10 bar
  • Operation Mode: Double
  • Piston Rod End: Male
  • Shape: Square
  • Rod Direction: One Side

Additional information

Weight 3,02 kg
Condition
Manufacturer
Type of Product
Shelf No. ,
Model
