Used

SMC CP96SDB63-50 ISO CYLINDER

📋
SKU: 1061700

✔ In Stock: 2 items available

2 in stock


ISO Cylinder

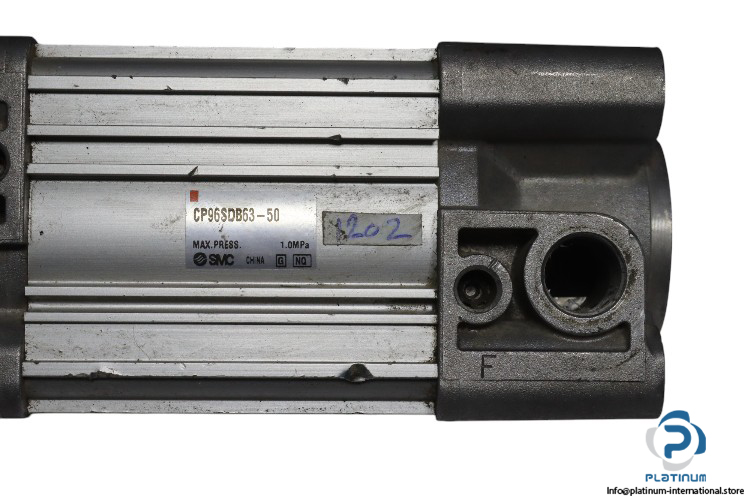

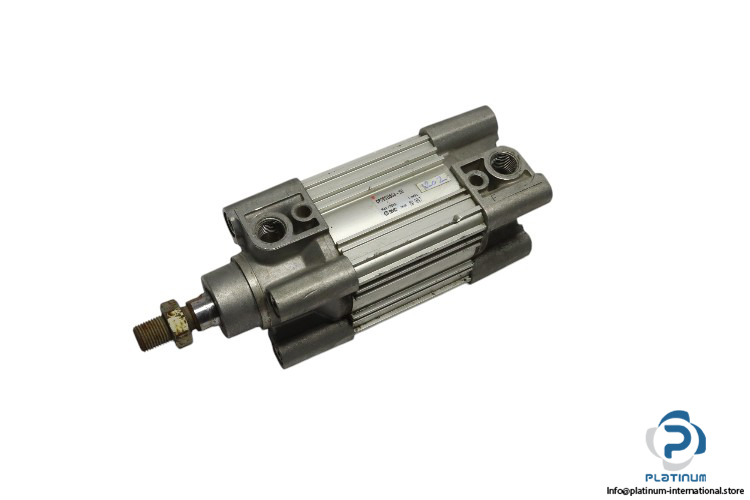

SMC ISO Cylinder CP96SDB63-50
features a 63 mm bore diameter and 50 mm stroke. It is designed for compressed air media with a maximum pressure of 10 bar, making it ideal for industrial pneumatic systems. The cylinder includes a male piston rod end and a square shape, ensuring efficient and reliable operation.

Description

SMC ISO Cylinder CP96SDB63-50

The SMC ISO Cylinder CP96SDB6350 is a high-performance pneumatic cylinder designed for industrial applications. With a bore diameter of 63 mm and a stroke of 50 mm, this cylinder is built to handle compressed air media, providing reliable and efficient motion in automated systems.

Manufacturer: SMC

Model: CP96SDB63-50

Technical Specifications

  • Media: Compressed Air
  • Bore Diameter: 63 mm
  • Stroke: 50 mm
  • Bore x Stroke: 63 x 50 mm
  • Rod Diameter: 20 mm
  • Frame Dimensions: 76 x 205 mm
  • Pneumatic Connection: G 3/8
  • Pressure Max.: 10 bar
  • Operation Mode: Double
  • Piston Rod End: Male
  • Shape: Square
  • Rod Direction: One Side

Additional information

Weight 1,98 kg
Condition
Type of Product
Manufacturer
Shelf No. ,
Model
