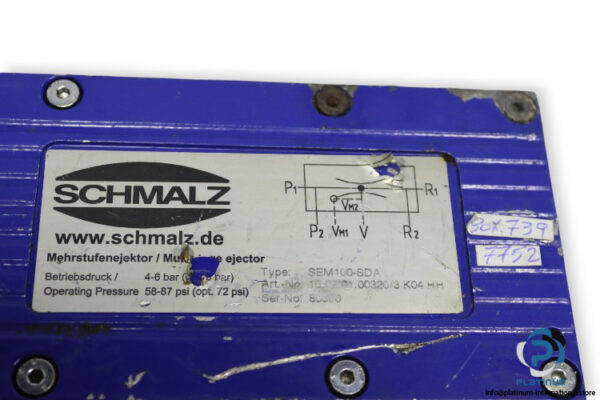

SCHMALZ SEM100-SDA BASIC EJECTOR
Availability: 1 in stock
Manufacturer: SCHMALZ
Type: Basic ejector with maximum suction capacity
Model: SEM 100-SDA
Part No.: 10 02 01 00320/3 K04 HH
Manufacturer: SCHMALZ
Type: Basic ejector with maximum suction capacity
Model: SEM 100-SDA
Part No.: 10 02 01 00320/3 K04 HH
Size: 100
Degree of evacuation: 85 %
Suction rate (max): 64.3 m³/h
Air consumption (during evac.): 22.6 m³/h
Noise level (free): 90 dB
Pressure optimal: 5 bar
Int. hose diameter (recom.) comp.-air: 9 mm
Int. hose diameter (recom.) vacuum side: 32 mm
Ambient temperature: 0 … 50 °C
Connection: 1″ & 1/4″
| Weight | 1,5 kg |
|---|---|
| Condition | Used |
| Manufacturer | Schmalz |
| Shelf No. | 240903 |
| Type of Product | Basic ejector with maximum suction capacity |
| Model | SEM 100-SDA |
