Contactors

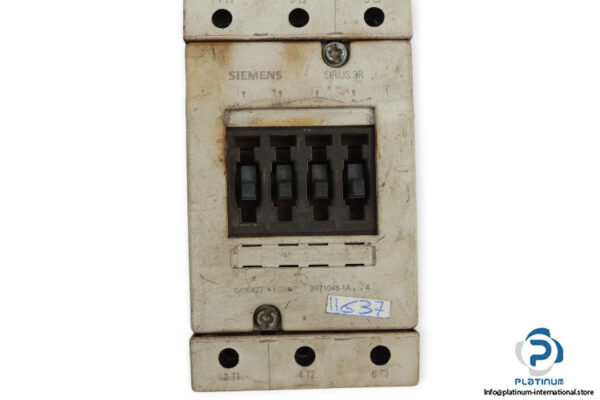

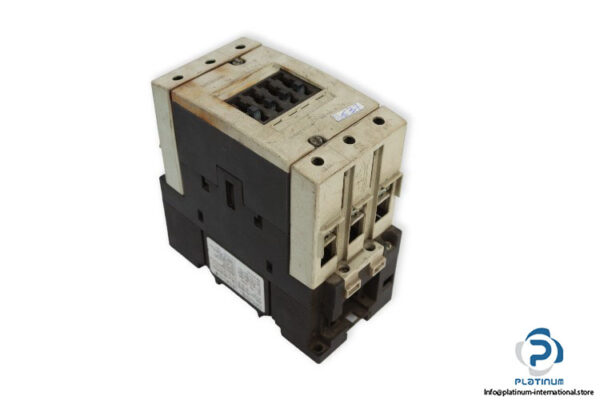

SIEMENS 3RT1045-1AP04 POWER CONTACTOR
125,00$
Manufacture: Siemens
Type: Power contactor
MNR: 3RT10451AP04
Family: SIRIUS 3R
Availability: 1 in stock
Only 1 item left. *Delivery time: 3-5 business days. *Express delivery: Worldwide delivery by FedEX/DHL express courierManufacture: Siemens
Type: Power contactor
MNR: 3RT10451AP04
Family: SIRIUS 3R
Control supply voltage: 230 V AC@50 Hz
Rated isolation voltage Ui: 1000 V
Operating current Ie AC-1: 120 A
Degree of pollution: 3
Power AC-3: 37 KW @ 400 V
Rated current AC-3: 80 A@ 400 V
Number of poles for main current circuit: 3
Number of NC contacts for auxiliary contacts: 2
Number of NO contacts for auxiliary contacts: 2
Degree of Protection: IP20
Torque: 4 … 6 Nm

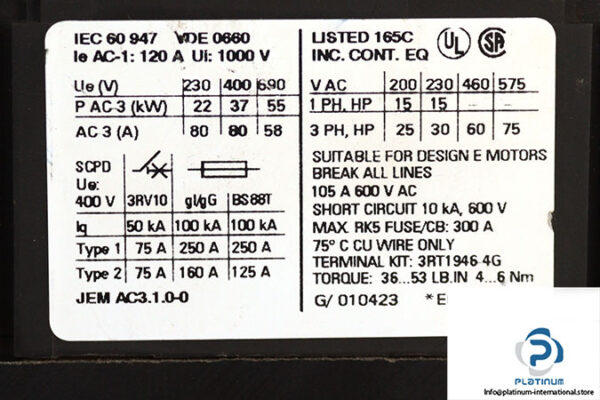

Standard: IEC 60 947 / VDE 0660
Ambient temperature during operation: -25 … +60°C

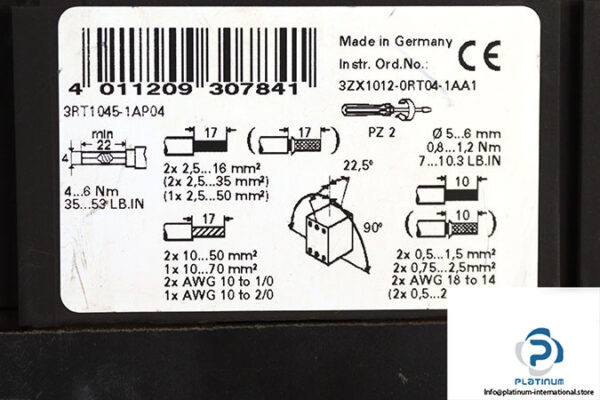

Type of electrical connection: screw-type terminals
Dimensions: 146 x 70 x 188 mm
| Weight | 1,77 kg |
|---|---|
| Condition | Used |
| Manufacturer | Siemens |
| Type of Product | Power Contactor |
| Voltage Type | AC |
| Frequency [Hz] | 50 |
| Coil Voltage [V] | 230 V |
| Contact | 2 NO, 2 NC |
| Power at 400 V [kW] | 37 |
| Shelf No. | 240420 |
| MNR | 3RT1045-1AP04 |
| Torque [Nm] | 6-Apr |
| Dimensions [mm] | 146 x 70 x 188 mm |
