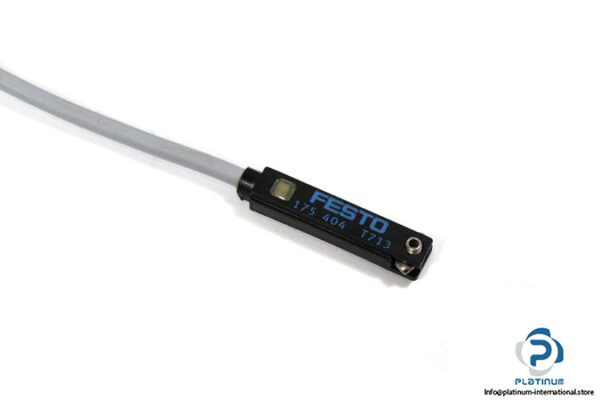

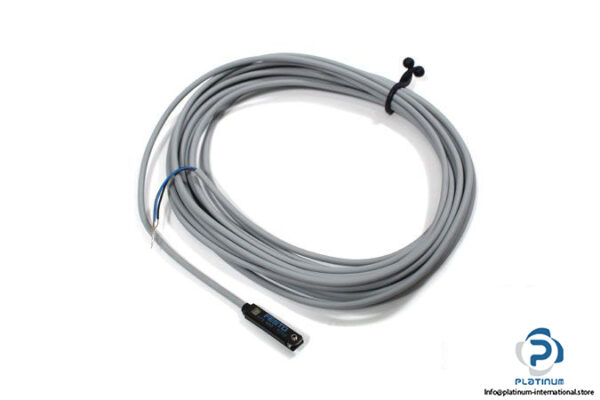

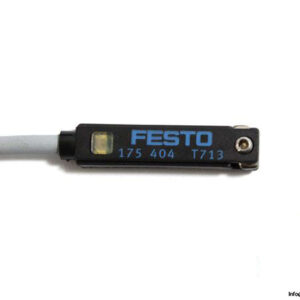

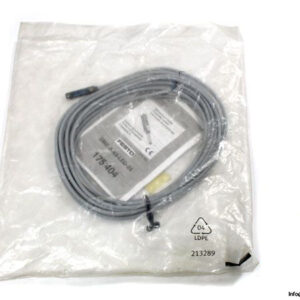

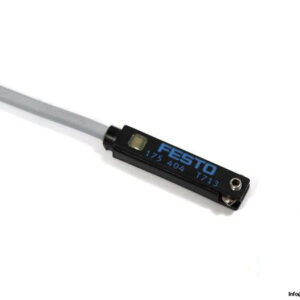

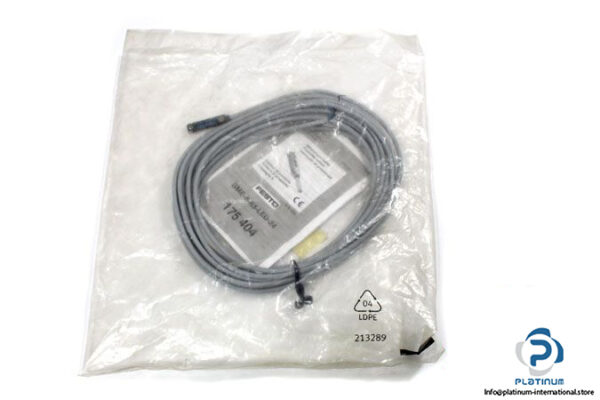

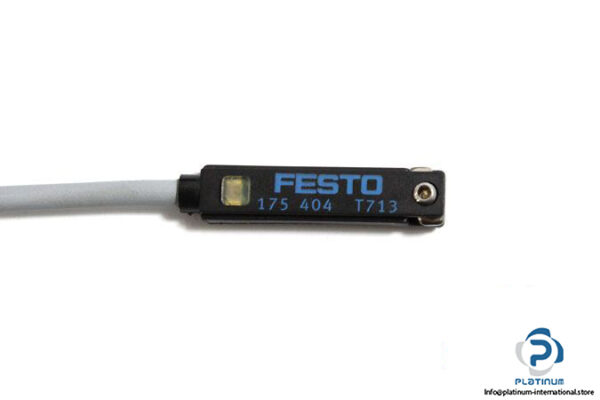

Festo SME-8-K5-LED-24 Proximity Sensor

The Festo SME-8-K5-LED-24 is a compact magnetic reed proximity sensor specifically designed for T-slot applications. It offers reliable position detection, easy installation, and excellent resistance to harsh industrial environments with IP65 and IP67 enclosure ratings.

Manufacturer: FESTO

Type: Proximity Sensor

Model: SME-8-K5-LED-24

Part No.: 175 404

Technical Data:

• Measuring Principle: Magnetic reed
• Design: For T-slot
• Operating Voltage: 24 V DC
• Switching Output: Normally open
• Connector Type: Cable, 5 m
• Enclosure Rating: IP65, IP67
• Ambient Operating Temperature: -40 to 70°C
• Dimensions: 4 x 6 x 29 mm
• Housing Material: Epoxy resin, PET, PC
• Type of Mounting: Clamped in T-slot
