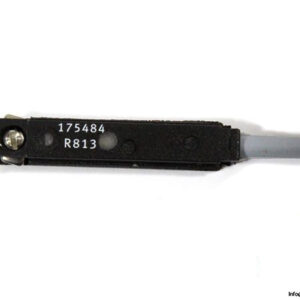

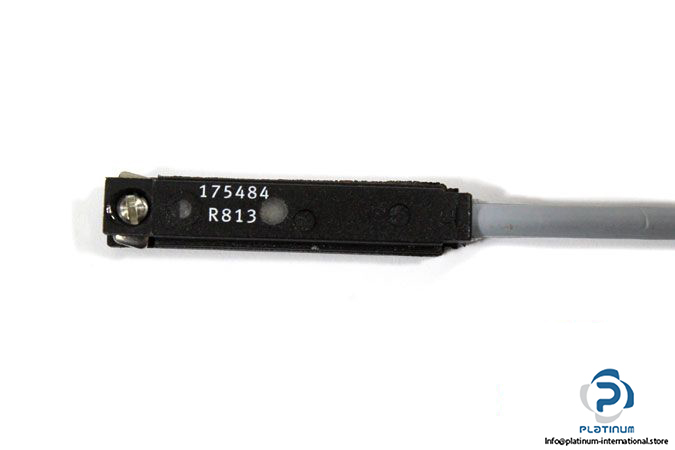

Manufacturer: FESTO
Type: Proximity Sensor
Model: SMT-8-PS-S-LED-24-B
Part No: 175 484

Application: Used for detecting the piston position on Cylinders with integrated sensor groove
Operating Voltage: 10 … 30 V DC
Switching Current max.: 500 mA
Switching Capacity: 100 nF
Electrical Design: PNP
Switching Output: Normally Open (NO)

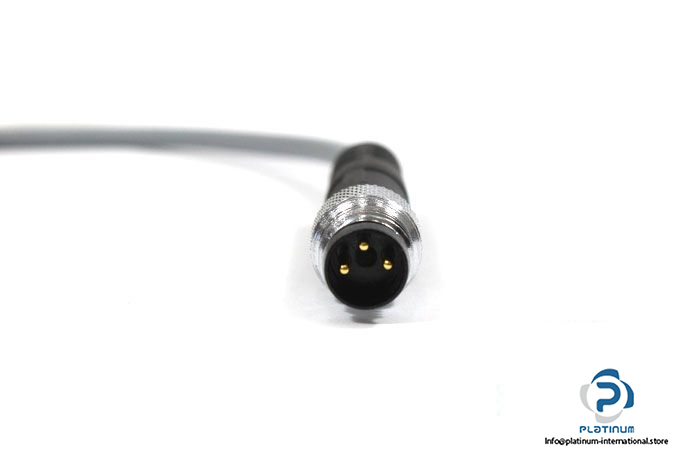

Connector Type: PUR Cable M8, 3-PIN
Housing Material: St
Enclosure Rating: IP 65 / IP 67
Temperature: -20 … 60 °C
Dimensions: 5 x 6 x 32 mm
