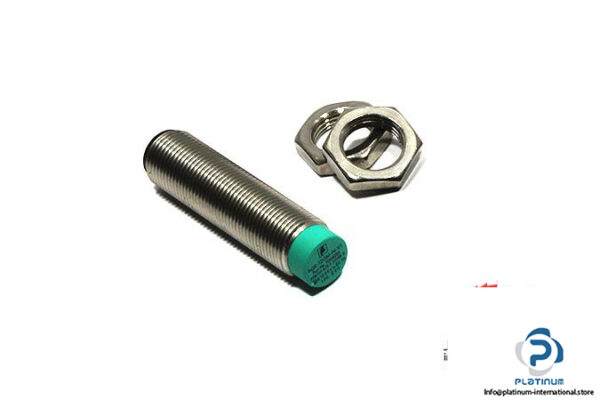

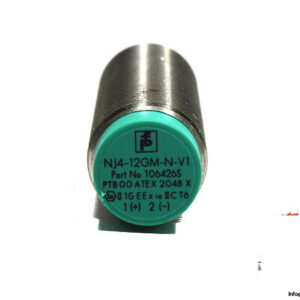

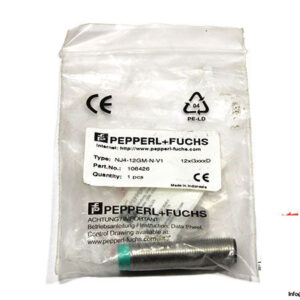

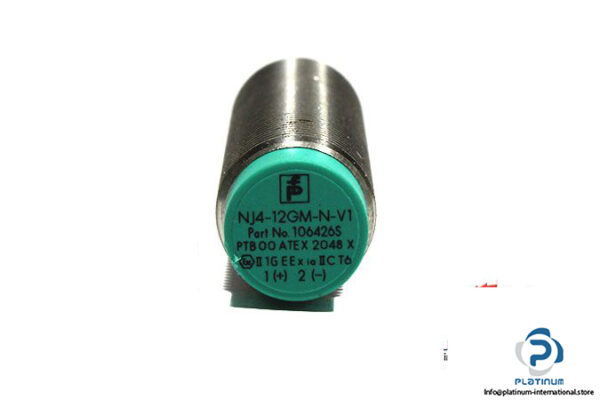

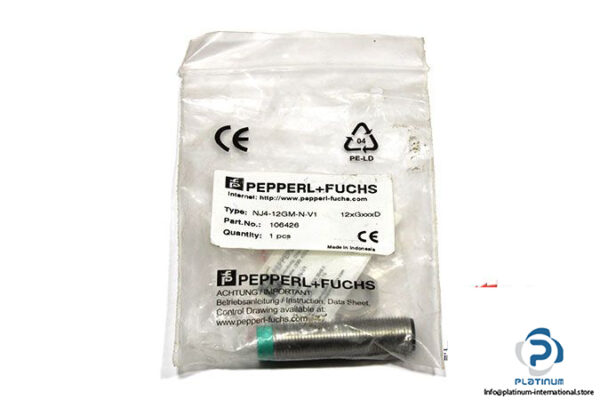

Manufacturer: Pepperl+Fuchs

Type: Inductive Sensor

Model: NJ4-12GM-N-V1

Part No: 106426S

Rated Operating Distance: 4 mm

Assured Operating Distance: 0 … 3.24 mm

Operating Voltage: 8.2 V DC

Current Consumption (Measuring Plate Not Detected): ≥ 3 mA

Current Consumption (Measuring Plate Detected): ≤ 1 mA

Signal Output Type: NAMUR

Switching Function: Normally Closed

Switching Frequency f: 0 … 1500 Hz

Installation: Non-Flush

Protection Degree: IP67

Ambient Temperature: -25 … 100 °C

Material: Housing: Stainless Steel 1.4305 / AISI 303, Sensing Face: PBT

Connection: Connector M12 x 1

Diameter, Length: 12, 50 mm

Weight: 0.025 kg
