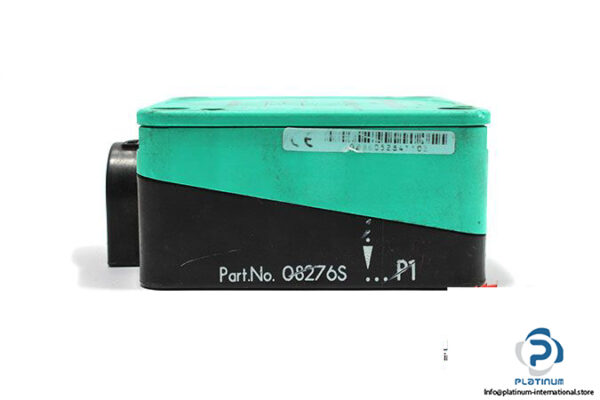

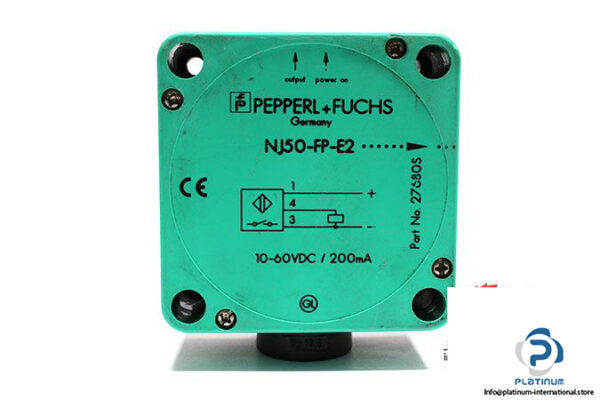

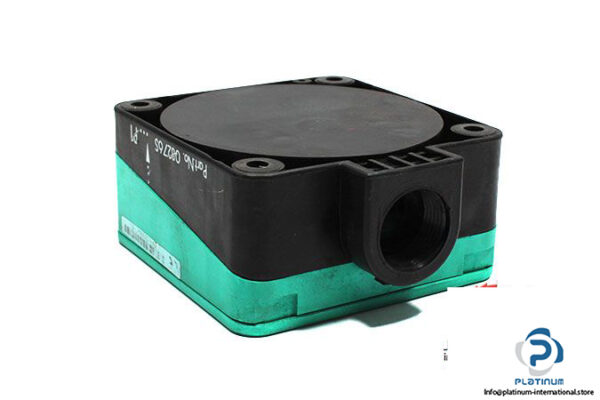

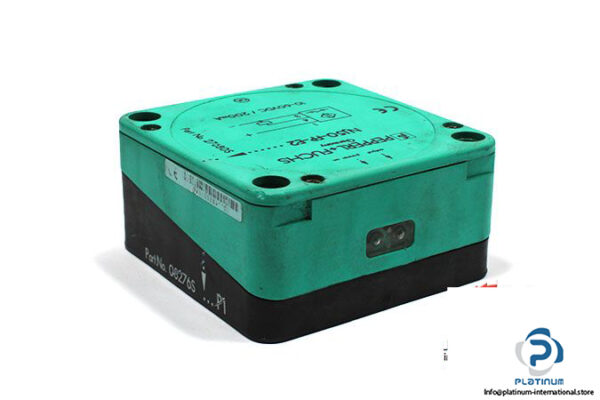

PEPPERL+FUCHS NJ50FPE2P1 INDUCTIVE SENSOR
The PEPPERL+FUCHS NJ50FPE2P1 is a robust non-flush inductive sensor designed for reliable object detection in harsh industrial environments. With a long sensing range of up to 50 mm and IP67 protection, it ensures stable operation under demanding conditions.
Manufacturer: Pepperl Fuchs
Type: Inductive Sensor
Model: NJ50FPE2P1
Part No.: 27680S
Technical Information
- Rated Operating Distance: 50 mm
- Assured Operating Distance: 0 / 40.5 mm
- Time Delay Before Availability: 30 ms
- Operating Voltage: 10 / 60 V DC
- Operating Current: 200 mA
- Switching Frequency: 0 / 100 Hz
- Electrical Design: PNP
- Switching Output: Normally Open
- Connector Type: Terminal Compartment
- Protection Class: II
- Enclosure Rating: IP67
- Ambient Operating Temperature: -25 to 70 °C
- Dimensions: 80 x 40 x 80 mm
- Housing Material: PBT
- Sensing Face Material: PBT
- Mounting: Non-Flush, Mountable
