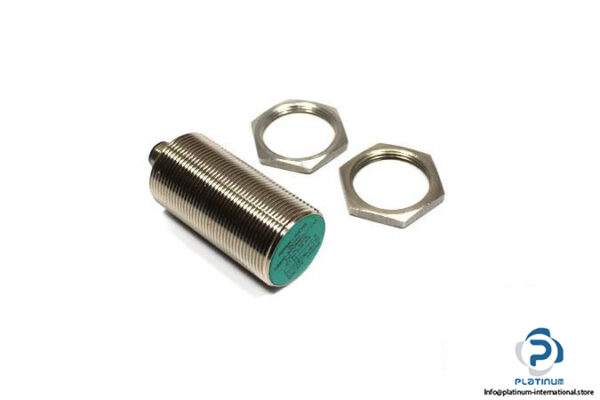

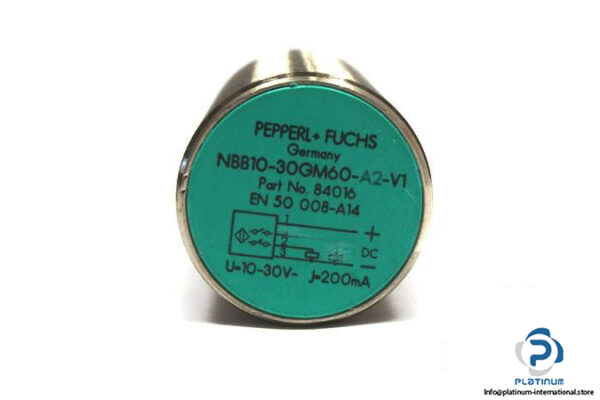

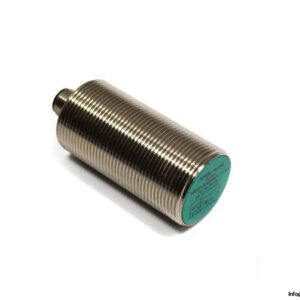

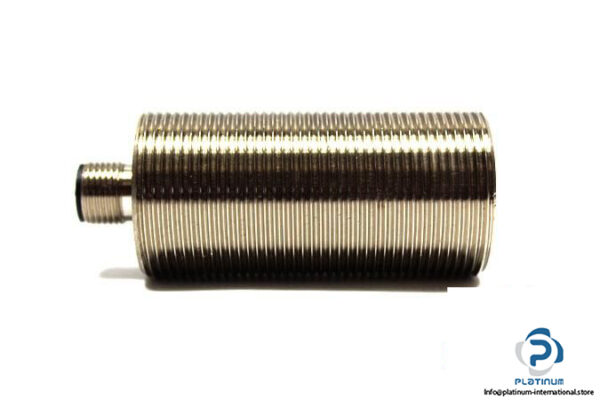

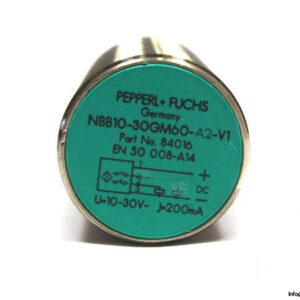

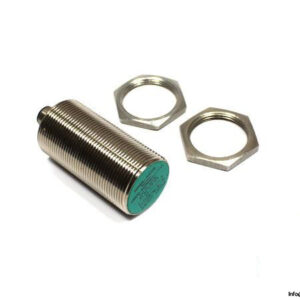

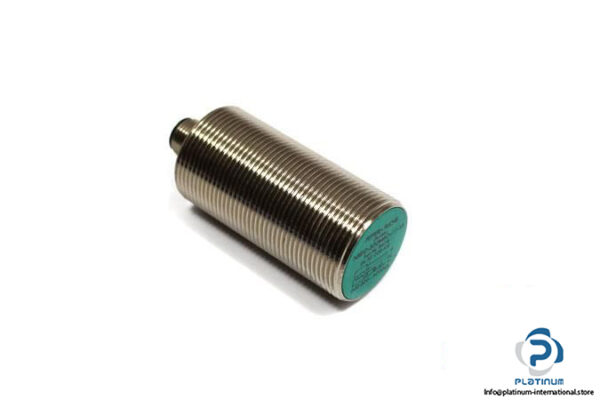

PEPPERL+FUCHS NBB10-30GM60-A2-V1 INDUCTIVE SENSOR

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NBB1030GM60A2V1

Part No.: 84016

Rated operating distance: 10 mm

Assured operating distance: 0 … 8.1 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Switching frequency: 200 Hz

Electrical design: PNP

Switching output: Normally open/normally closed

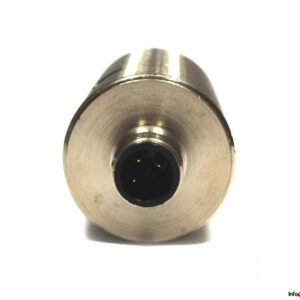

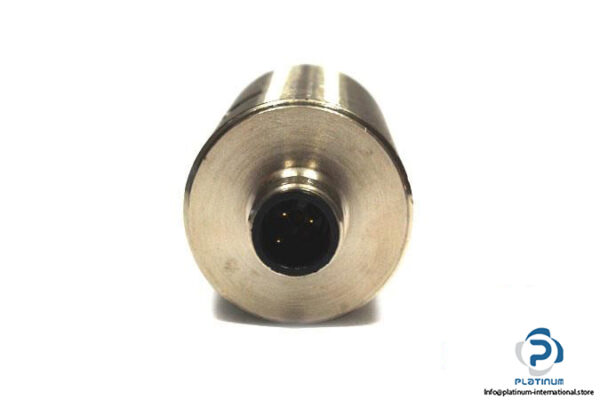

Connector type: M12 Connector, 3-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -40 … 70°C

Diameter, housing length: 30, 60 mm

Housing material: Brass, nickel-plated

Sensing face material: PBT

Mounting: Flush-mountable

Condition: Used
