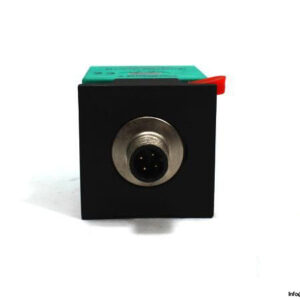

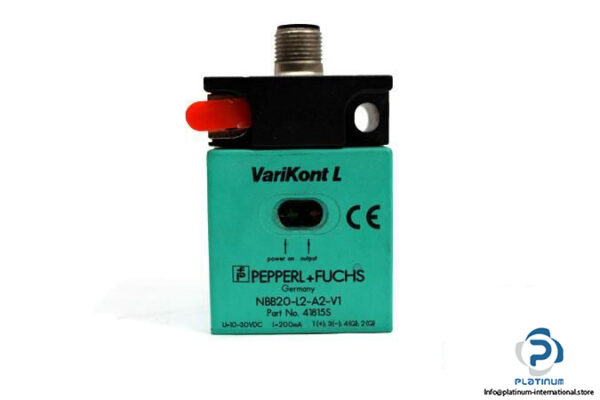

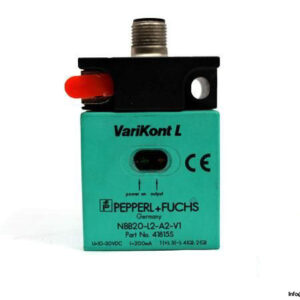

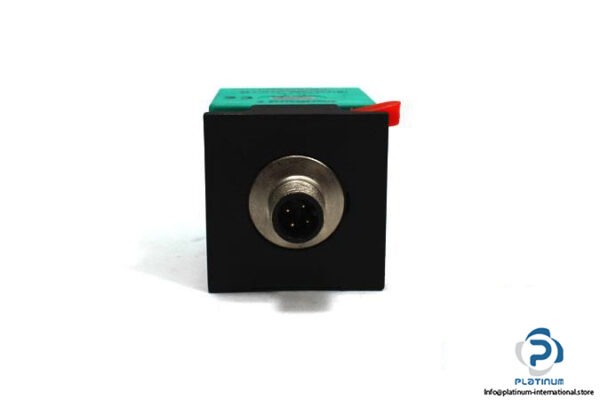

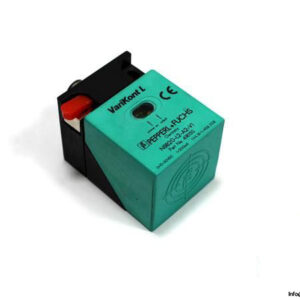

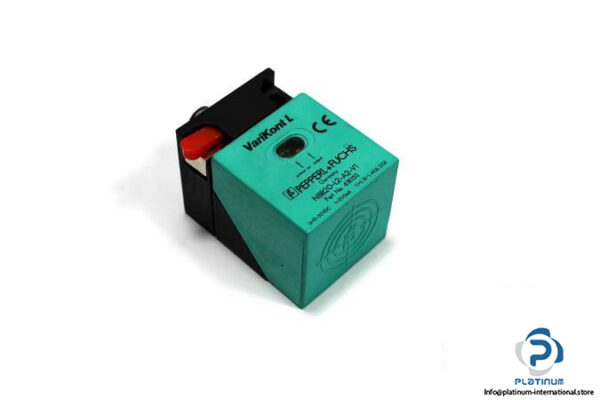

Manufacturer: PEPPERL FUCHS

Series: VariKont L

Type: INDUCTIVE SENSOR

Model: NBB20L2A2V1

Part No.: 41815S

Rated Operating Distance: 20 mm

Actual Operating Distance: 0 … 16.2 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Switching Frequency: 0 … 440 Hz

Electrical Design: PNP

Switching Output: Normally Open and Normally Closed (Complementary)

Connector Type: M12 Connector, 4-Pin

Protection Class: II

Enclosure Rating: IP69K

Ambient Operating Temperature: -25 … 85°C

Dimensions: 40 x 40 x 55 mm

Housing Material: PA

Sensing Face Material: PA

Mounting: Flush Mountable

Weight: 130 g
