Manufacturer:  PEPPERL FUCHS

Type:  INDUCTIVE SENSOR

Model No.: NBN1530GM50E2V1

Part No.: 84201

Rated operating distance: 15 mm

Assured operating distance: 0 … 12.15 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Switching frequency: 0 … 200 Hz

Electrical design: PNP

Switching output: Normally open

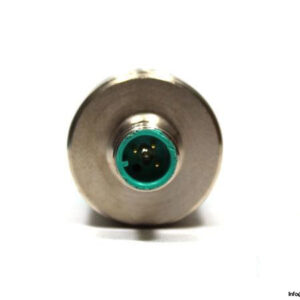

Connector type: M12 Connector, 3-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -40 … 70°C

Diameter, housing length: 30, 50 mm

Housing material: PBT

Sensing face material: Brass, nickel-plated

Mounting: Non-flush mountable

Condition: New
