25-10R BALL SCREW

25-10R-ball-screw-used-395
25-10R-ball-screw-used-395

25-10R BALL SCREW

Type: Flange Nut Ball Screw

Model: 25-10 R

The Flange Nut Ball Screw ensures precision linear motion with a 25 mm nominal diameter, 10 mm lead, and a threaded length of 395 mm.

SKU: 1057894 Category: Tags: , , , , , , , , , , , , ,
Add to quote

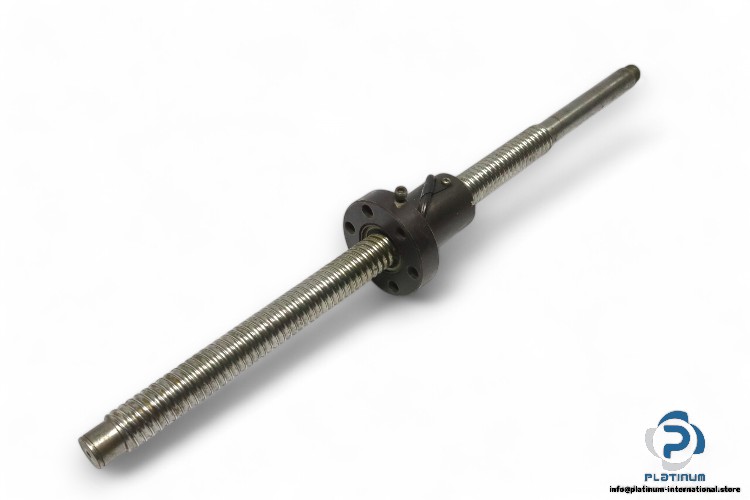

Flange Nut Ball Screw (Model: 25-10 R)

Type: Flange Nut Ball Screw

Model: 25-10 R

The Flange Nut Ball Screw (Model: 25-10 R) is designed for efficient linear motion and precision in various applications. Its construction ensures smooth operation and high accuracy.

  • Nominal Diameter (dN): 25 mm
  • Lead (P): 10 mm
  • Number of Starts: 2
  • Direction of Lead: Right-Hand Thread
  • Threaded Length: 395 mm
  • Total Screw Length: 555 mm
  • Size: 25 x 10 R
Weight 2,45 kg
Condition

Used
Size

25 x 10 R
Nut Length [mm]

76
Type of Product

Flange nut ball screw
Shelf No.

250131
Flange Diameter [mm]

72
Nut Outer Diameter [mm]

42
Flange Thickness [mm]

18
Model

25-10R
