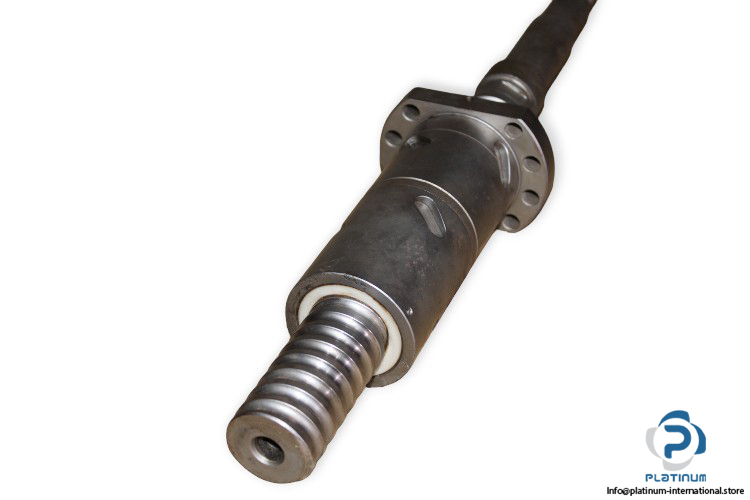

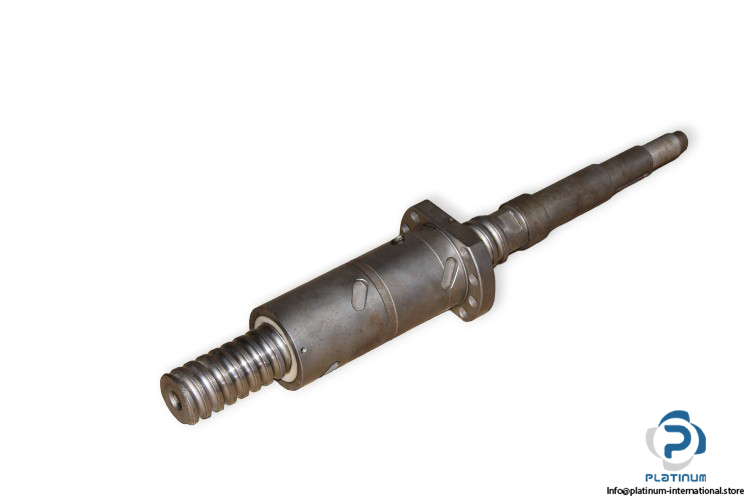

Type: Flanged nut ball screw
Model: 40-10 R
Size: 40
Nominal Diameter: 40 mm
Lead P: 10 mm
Direction of Lead: Right-Hand Thread
Threaded length: 275 mm
Total screw length: 470 mm
| Weight | 5,4 kg |
|---|---|
| Condition | Used |
| Size | 40 x 10 R |
| Type of Product | Flanged Nut Ball Screw |
| Flange Diameter [mm] | 93 mm |
| Nut Outer Diameter [mm] | 63 mm |
| Flange Thickness [mm] | 14 mm |
| Cutting Flange Width [mm] | 70 mm |
| Shelf No. | 240805 |
| Model | 40-10 |
| Nut Length [mm] | 160 mm |
