40-5R BALL SCREW

40-5R-ball-screw-used-750
40-5R-ball-screw-used-750

40-5R BALL SCREW

Type: Flange Nut Ball Screw

Model: 40-5 R

The Flange Nut Ball Screw offers precise linear motion with dimensions of 40 mm (dN), 5 mm (P), and a threaded length of 750 mm.

SKU: 1057903 Category: Tags: , , , , , , , , , , , ,
In stock: 2 pcs
Very low
Hurry! Only 2 left in stock.
Add to quote

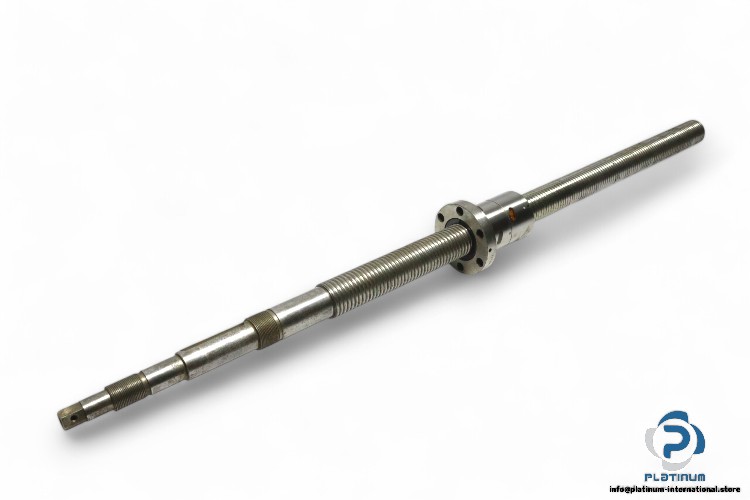

Flange Nut Ball Screw (Model: 40-5 R)

Type: Flange Nut Ball Screw

Model: 40-5 R

Size: 40 x 5 R

The Flange Nut Ball Screw (Model: 40-5 R) offers a high-precision, durable solution for linear motion applications. With its right-hand thread and compact dimensions, it delivers smooth operation for demanding industrial environments.

  • Nominal Diameter (dN): 40 mm
  • Lead (P): 5 mm
  • Number of Starts: 1
  • Direction of Lead: Right-Hand Thread
  • Threaded Length: 750 mm
  • Total Screw Length: 1030 mm
Weight 9,92 kg
Condition

Used
Size

40 x 5 R
Flange Diameter [mm]

90
Nut Outer Diameter [mm]

63
Type of Product

Flange nut ball screw
Shelf No.

250131
Model

40-5R
Nut Length [mm]

100
Flange Thickness [mm]

16
