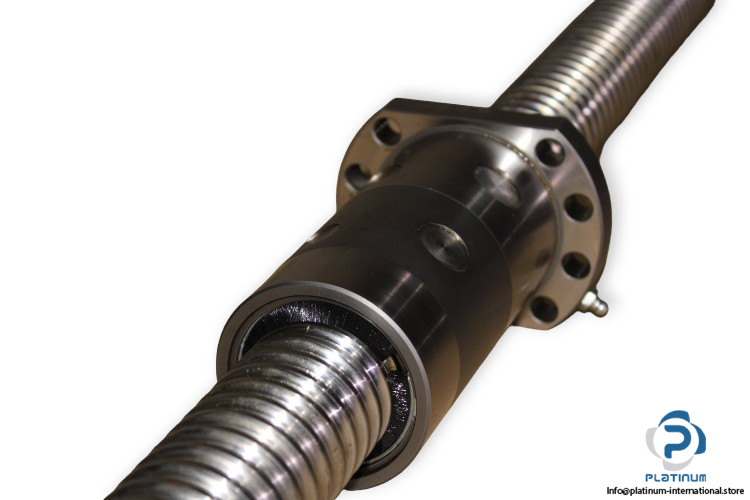

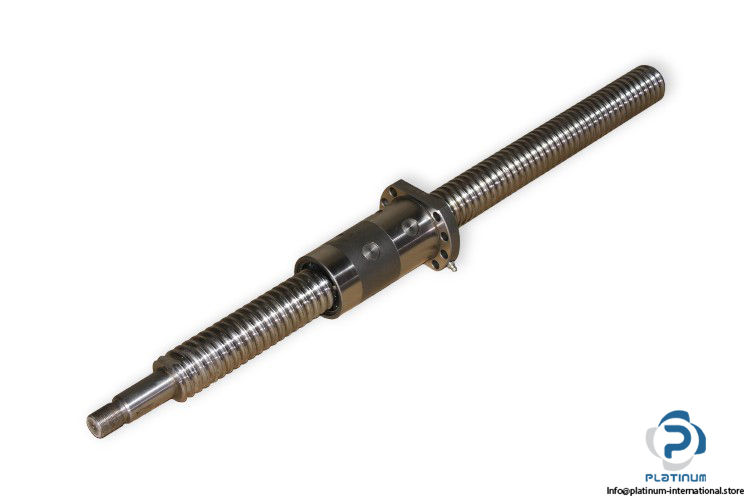

Type: Flanged nut ball screw
Model: 50-10 R
Size: 50
Nominal Diameter: 50 mm
Lead P: 10 mm
Direction of Lead: Right-Hand Thread
Threaded length: 780 mm
Total screw length: 870 mm
| Weight | 14,05 kg |
|---|---|
| Condition | Used |
| Size | 50 x 10 R |
| Type of Product | Flanged Nut Ball Screw |
| Flange Diameter [mm] | 110 mm |
| Nut Outer Diameter [mm] | 75 mm |
| Cutting Flange Width [mm] | 85 mm |
| Flange Thickness [mm] | 16 mm |
| Shelf No. | 240805 |
| Model | 50-10 |
| Nut Length [mm] | 163 mm |
