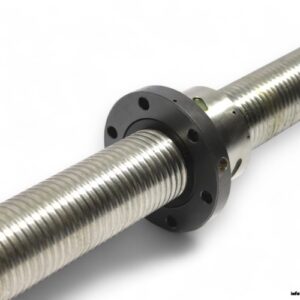

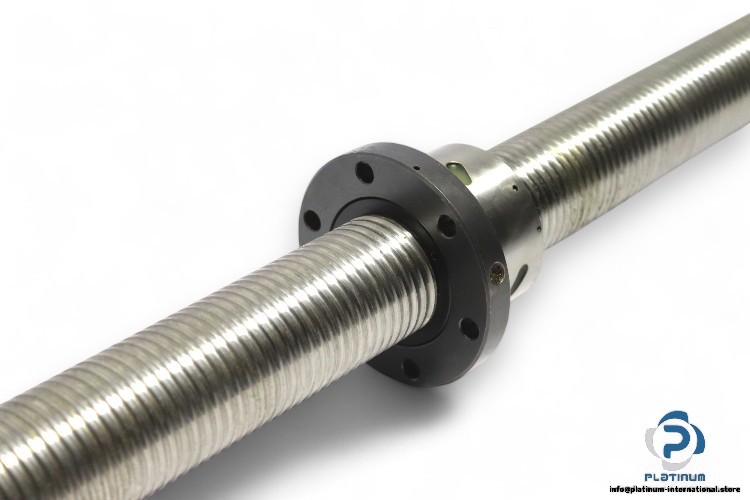

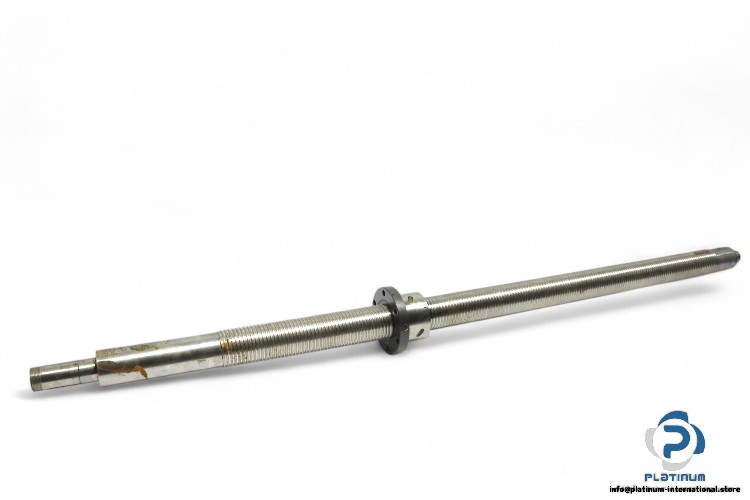

Flange Nut Ball Screw (Model: 50-5R)

Type: Flange Nut Ball Screw

Model: 50-5R

The Flange Nut Ball Screw (Model: 50-5R) is engineered for high precision and smooth motion in mechanical systems. It features a nominal diameter of 50 mm, a lead of 5 mm, and a threaded length of 925 mm, ensuring a reliable and efficient operation. This right-hand thread ball screw is designed for applications requiring consistent linear motion.

• Type: Flange Nut Ball Screw
• Model: 50-5R
• Size: 50 x 5 R
• Nominal Diameter (dN): 50 mm
• Lead (P): 5 mm
• Number of Starts: 1
• Direction of Lead: Right-Hand Thread
• Threaded Length: 925 mm
• Total Screw Length: 1240 mm
