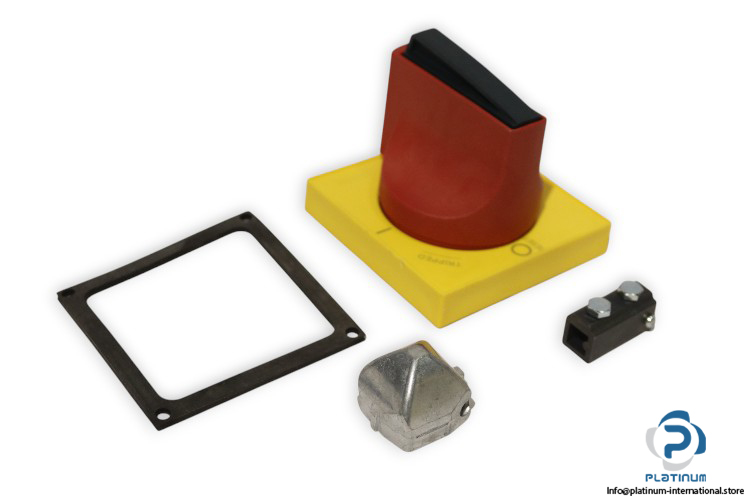

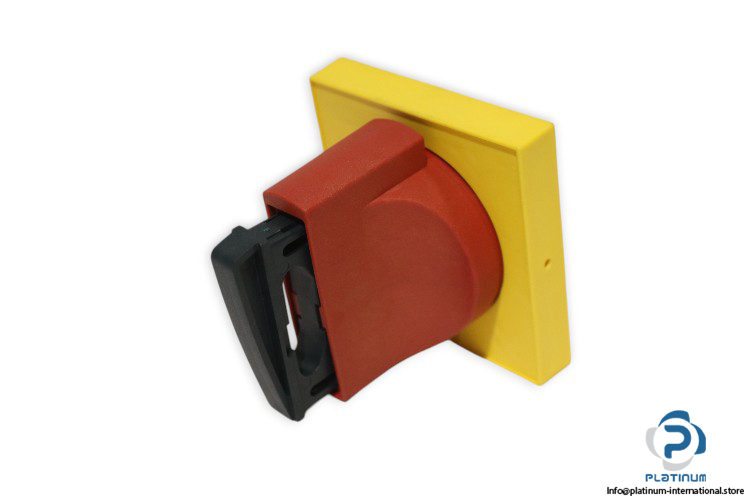

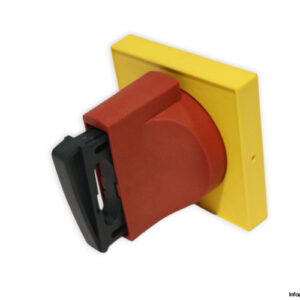

Door-Coupling Rotary Operating Mechanism 8ZX1012-0UC60-1AA1

The Door-Coupling Rotary Operating Mechanism 8ZX10120UC601AA1 is a robust and reliable component designed for safe manual operation of electrical switchgear. Engineered for precise control and easy installation, it provides secure mechanical coupling between the enclosure door and the internal operating shaft, ensuring smooth and dependable performance.

Type: Door-Coupling Rotary Operating Mechanism
Model: 8ZX1012-0UC60-1AA1
Code: 8UC71

Technical Information

• Mounting Hole Diameter (Front): 65 mm / 4.5 mm (bolt holes)
• Compatible Shaft Diameter: 42 / 50 mm
• Tightening Torque: Panel mounting screws: P4 x 11.5 mm / Torque 1.1 / 1.3 Nm; Handle screws: M4 / 2.6 Nm, M5 / 2.6 / 3 Nm; Front handle: 4 Nm
• Enclosure Types Supported: Type 1, 3R, 12
• Approval: UL / CSA Approved
• Protection Class: IP65
