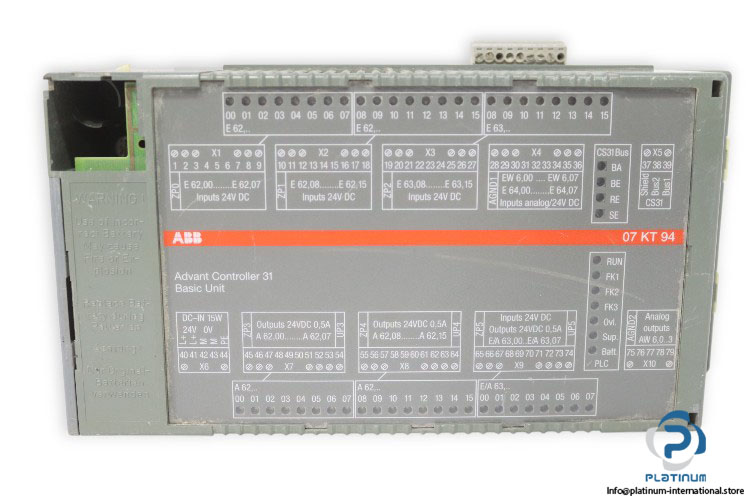

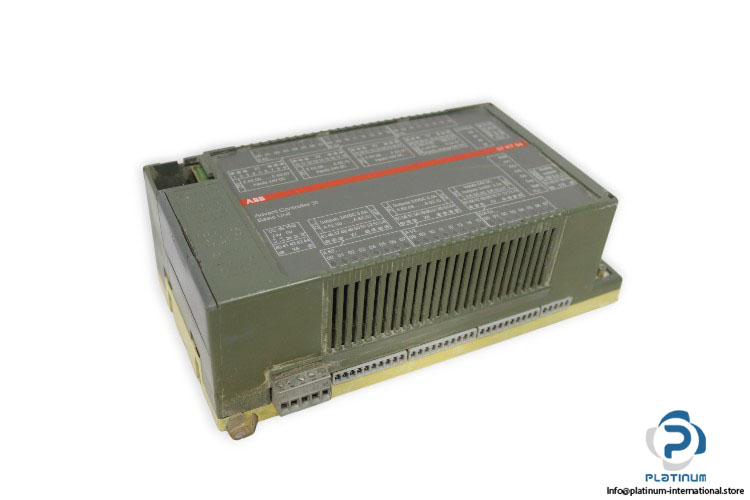

ABB Advant Controller 07KT94 H4

The ABB Advant Controller 07KT94H4 is part of the Advant Controller 31 range, designed for efficient control and automation tasks in industrial environments. With robust features, flexible I/O options, and reliable protection, it delivers stable performance for a wide range of process applications.

Manufacturer: ABB
Type: Advant Controller
Model: 07KT94 H4
ID No.: GJR5252100R0201

Technical Information

• Range: Advant Controller 31
• Supply Voltage: 24 V DC
• Current Consumption: 0.35 A
• Digital Inputs (DI): 24 (13 / 30 V DC, 5 mA)
• Digital Outputs (DO): 8
• Analog Outputs (AO): 4
• Digital Transistor Outputs: 16
• Protection Class: IP20
• Ambient Temperature: 0 / 55 °C
• Dimensions: 127 x 102 x 152 mm
