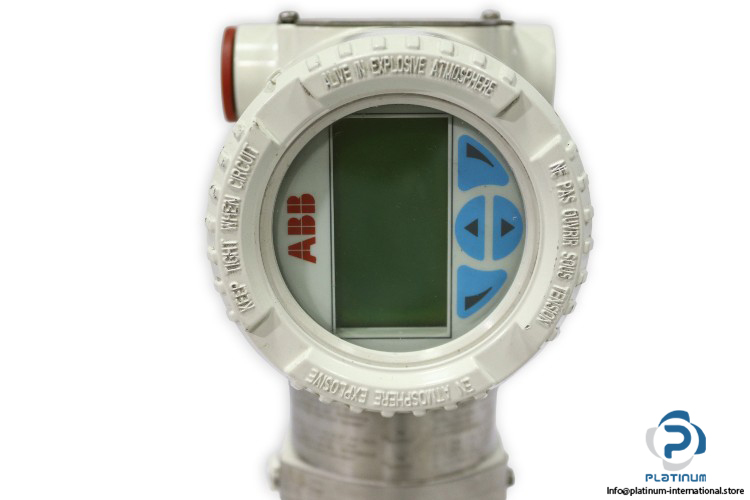

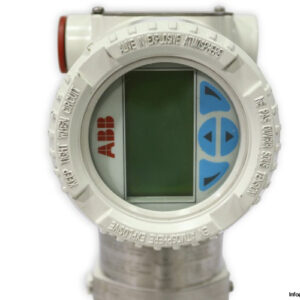

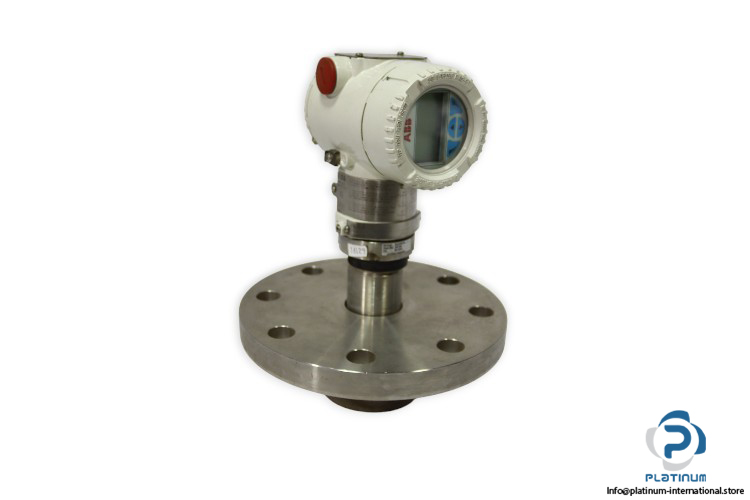

ABB 266HDHGRMB1L5M4 Pressure Transmitter

The ABB 266HDHGRMB1L5M4 Pressure Transmitter from the 2600T series provides high accuracy and long-term stability for industrial process measurement. Designed for harsh environments, it ensures reliable pressure monitoring and communication via HART protocol.

Manufacturer: ABB
Type: Pressure Transmitter
Series: 2600T

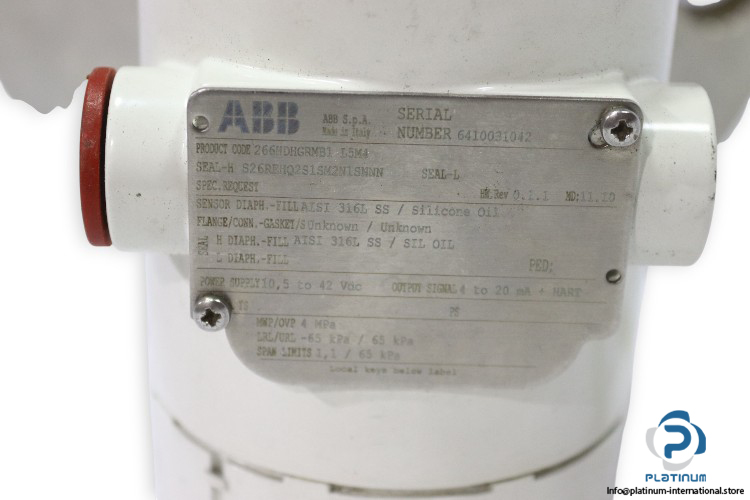

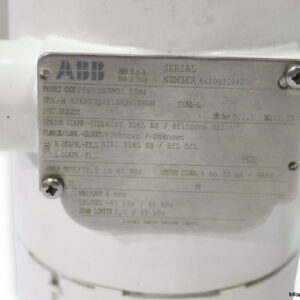

ID: 266HDHGRMB1L5M4
Serial No.: 6410031042
Seal-H: S26REHQ2S1SM2N1SNNN

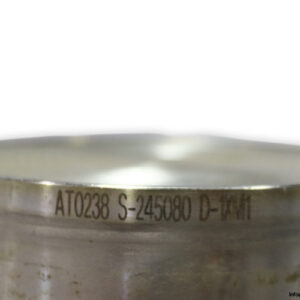

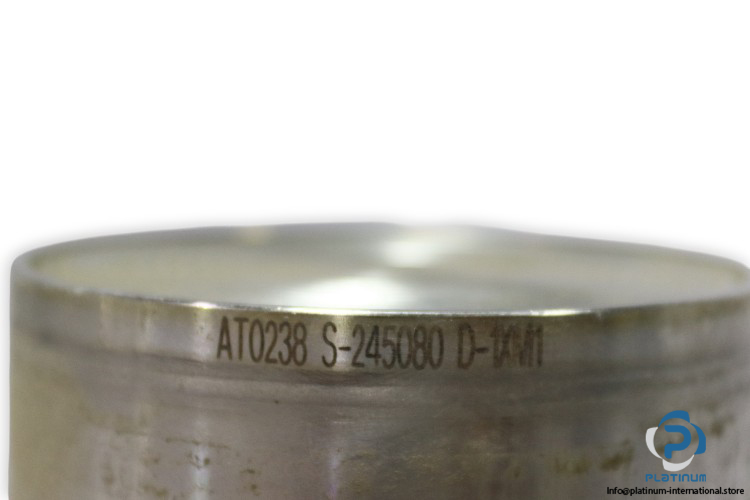

Ref No.: AT0238 S-245080 D-1XM1
Code: 27026410002401

Technical Information

Connection: ½ inch
Seal: H
Power Supply: 10.5 to 42 VDC
Output Signal: 4 to 20 mA + HART
Max Working Pressure: 4 MPa
URL (Upper Range Limit): 65 kPa
Span Limits: 1.1 / 65 kPa

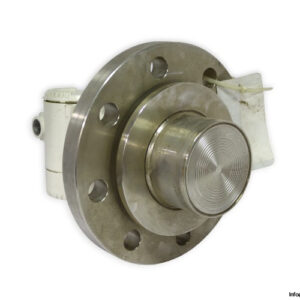

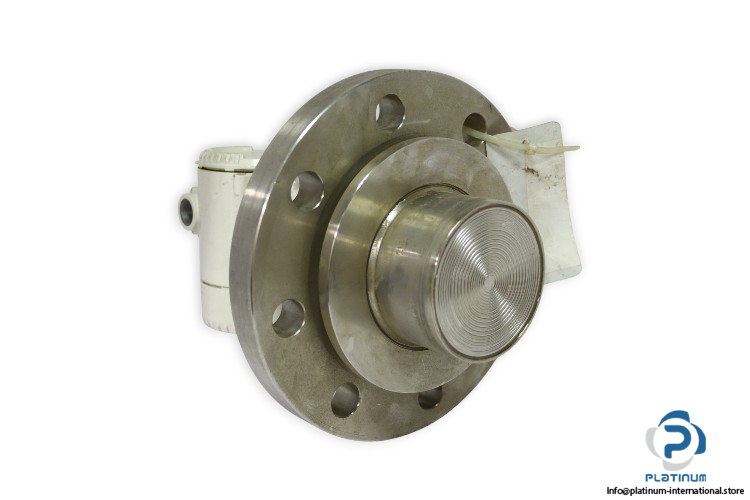

Material of the Diaphragm / Filling Fluid: AISI 316L SS / Silicone Oil
Enclosure Protection: IP67

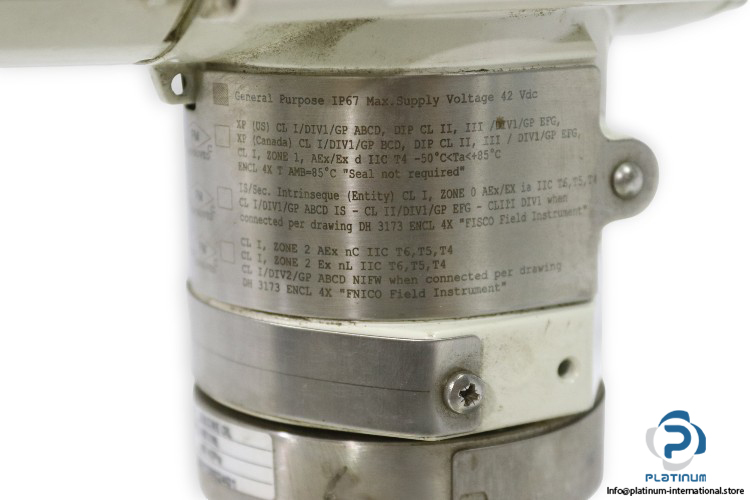

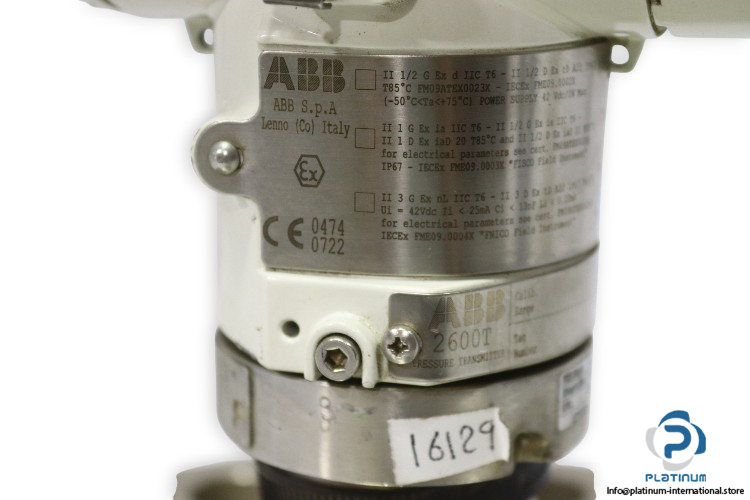

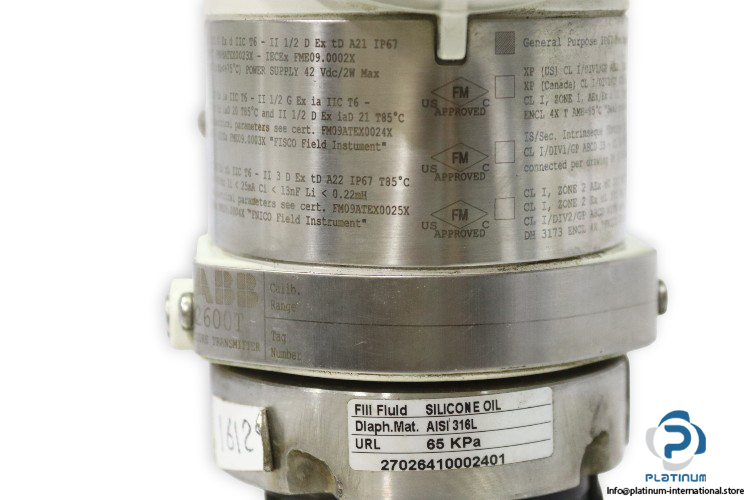

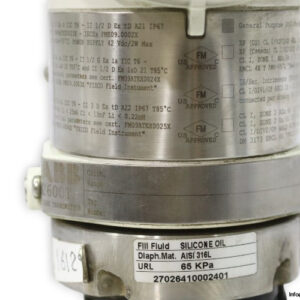

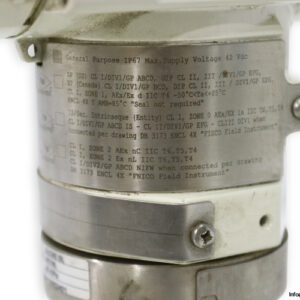

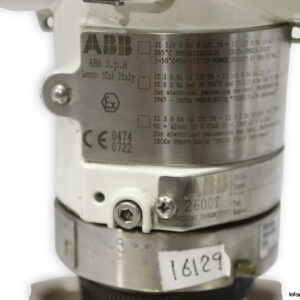

Explosion Class: II 1/2 G Ex d IIC T6 / T5 Gb / Ex tD A21 IP67 T85°C
Hardware Revision: 0.1.1
