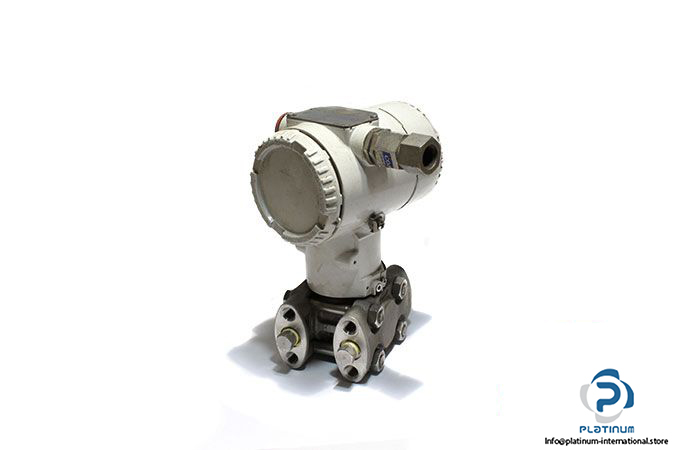

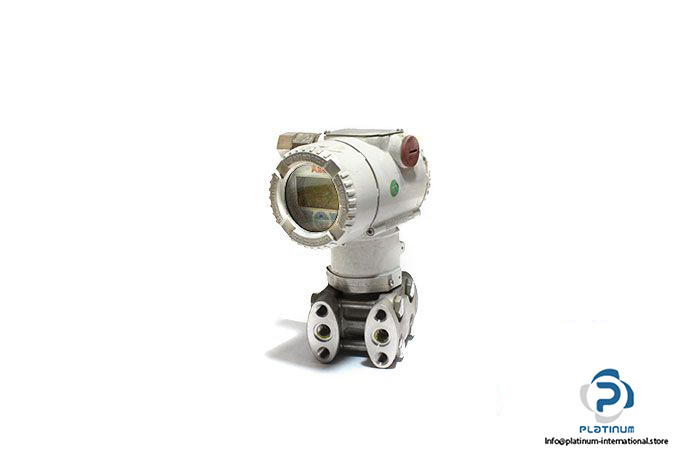

Manufacturer: ABB

Type: Differential pressure transmitter

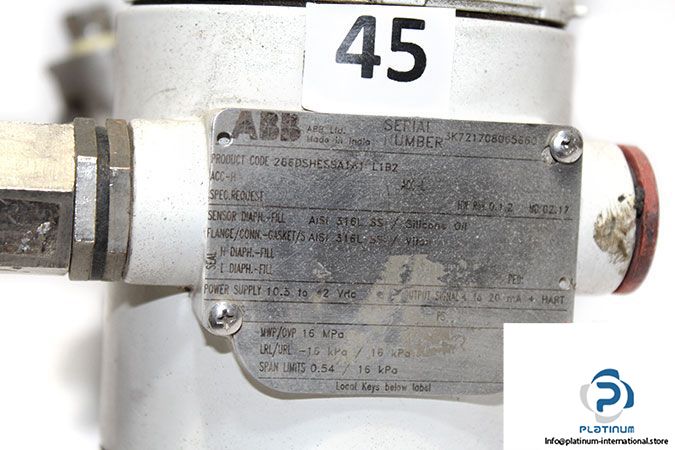

Model: 266DSHESSA1A1 L1B2

Sensor-Span Limits: 5.4 and 160 mbar

Application: Differential measurement at standard static pressure

Diaphragm material / Fill fluid (wetted parts): AISI 316 L ss Silicone oil

Process flanges/adapters material and connection (wetted parts): AISI 316 L ss (Horizontal connection) 1/4 in. – 18 NPT-f direct

Bolts/Gasket (wetted parts): For standard static, high static and gauge versions AISI 316 ss/ Viton®

Housing material: Aluminum alloy

Electrical Connection: ½ in. 14 NPT

Output: HART and 4 to 20 mA

Integral LCD: Digital LCD integral display with integrated keypad

Mounting bracket (shape and material): For pipe/wall mounting – Carbon steel

Weight: 4.4 kg
