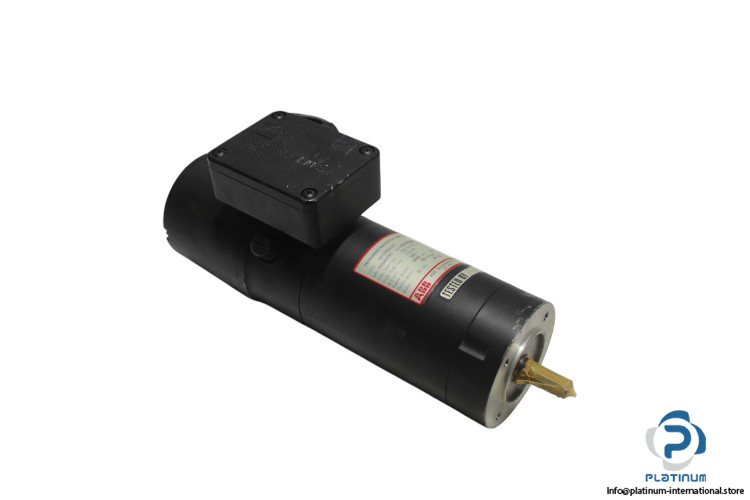

ABB 4413400131 DC Servo Motor

The ABB DC Servo Motor 4413400131 is designed for high-performance applications, offering precise control and reliable performance with its rated speed of 4000 rpm and continuous stall torque of 1.5 Nm.

Manufacturer: ABB

Type: DC Servo Motor

Model: 4413400131

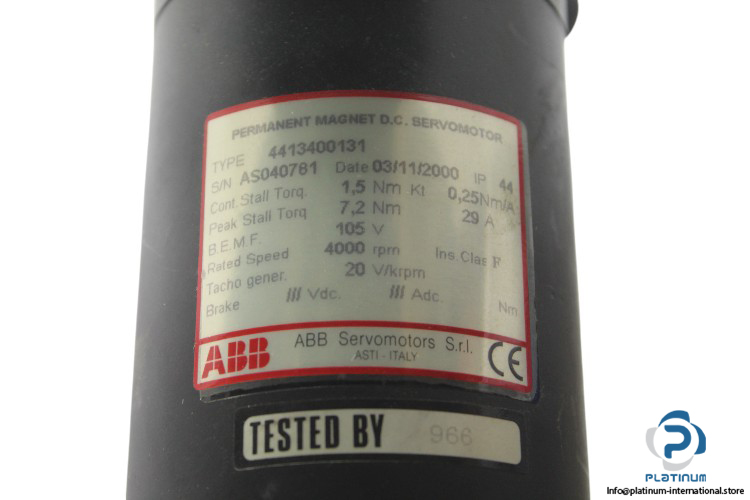

Technical Information:

• Cont. Stall Torque: 1.5 Nm
• Peak Stall Torque: 7.2 Nm
• Torque Constant: 0.25 Nm/A
• Rated Voltage [V]: 105
• Rated Current [A]: 29
• Rated Speed [rpm]: 4000
• Insulation Class: F
• Tacho Generator: 20 V/krpm
• Protection Class [IP]: 44
