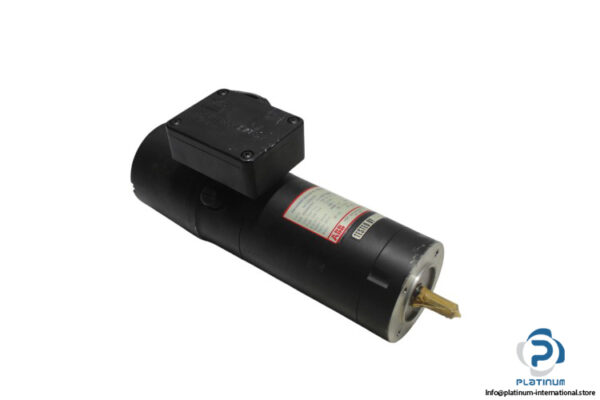

ABB 4413400131 DC Servo Motor
The ABB DC Servo Motor 4413400131 is designed for high-performance applications, offering precise control and reliable performance with its rated speed of 4000 rpm and continuous stall torque of 1.5 Nm.
Manufacturer: ABB
Type: DC Servo Motor
Model: 4413400131

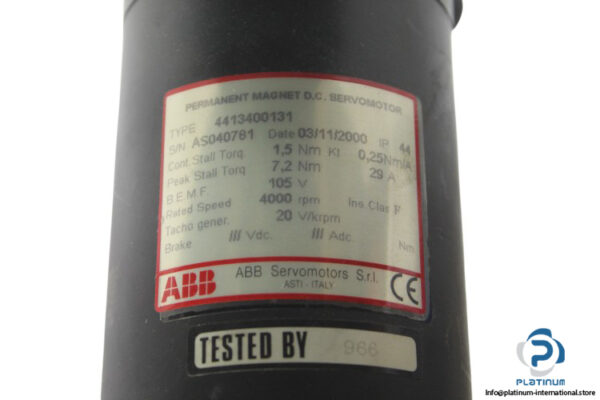

Technical Information:
- Cont. Stall Torque: 1.5 Nm
- Peak Stall Torque: 7.2 Nm
- Torque Constant: 0.25 Nm/A
- Rated Voltage [V]: 105
- Rated Current [A]: 29
- Rated Speed [rpm]: 4000
- Insulation Class: F
- Tacho Generator: 20 V/krpm
- Protection Class [IP]: 44
