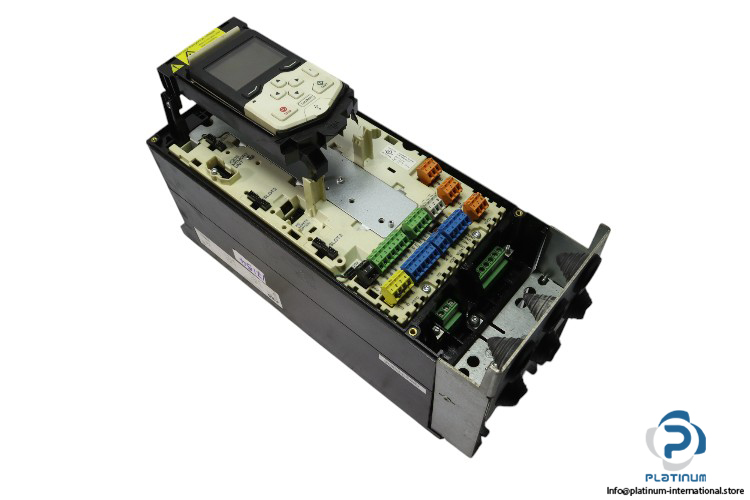

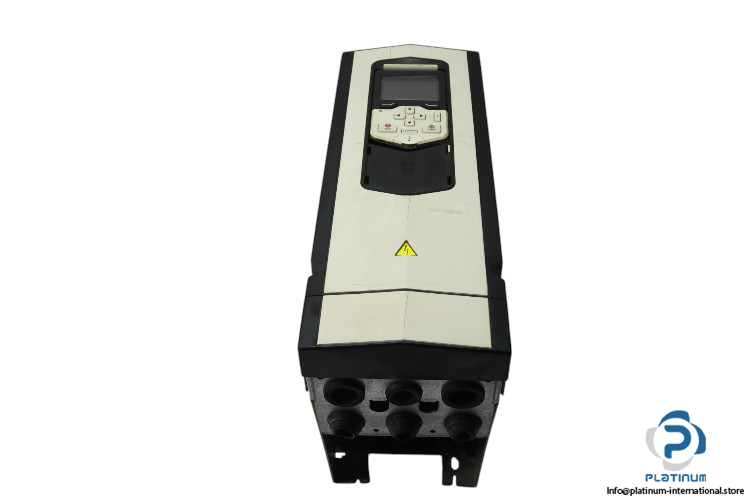

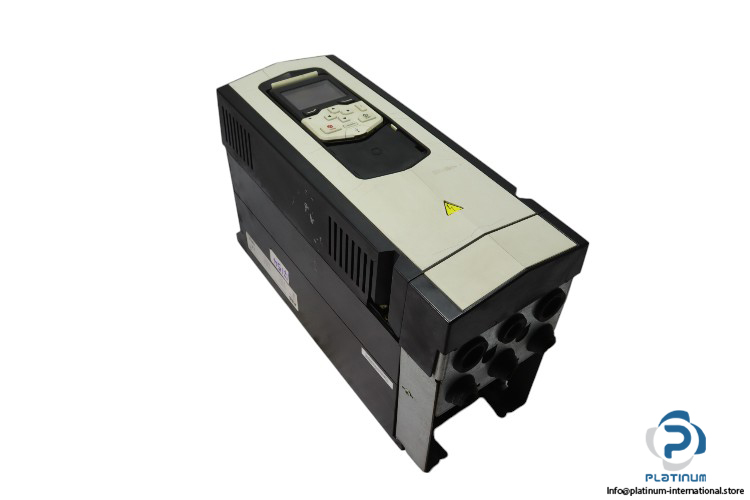

ABB ACS880-01-014A-5+E200 Frequency Converter

The ABB ACS880-01-014A-5+E200 is a high-performance frequency converter designed for industrial applications requiring precise motor control and energy efficiency. With advanced input and output capabilities, this unit ensures stable operation and seamless integration into automation systems.

• Manufacturer: ABB
• Type: Frequency Converter

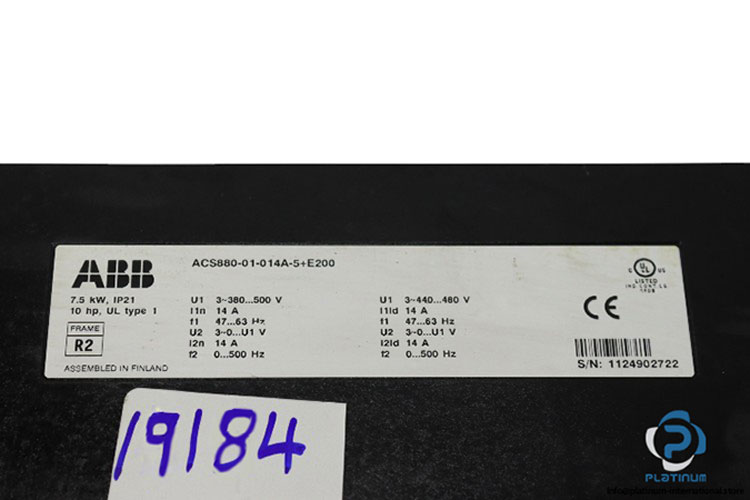

• Model: ACS880-01-014A-5+E200

Technical Information

Input Specifications:

• Voltage: 380 to 500 V AC / 3-phase
• Frequency: 47 to 63 Hz
• Current: 14 A

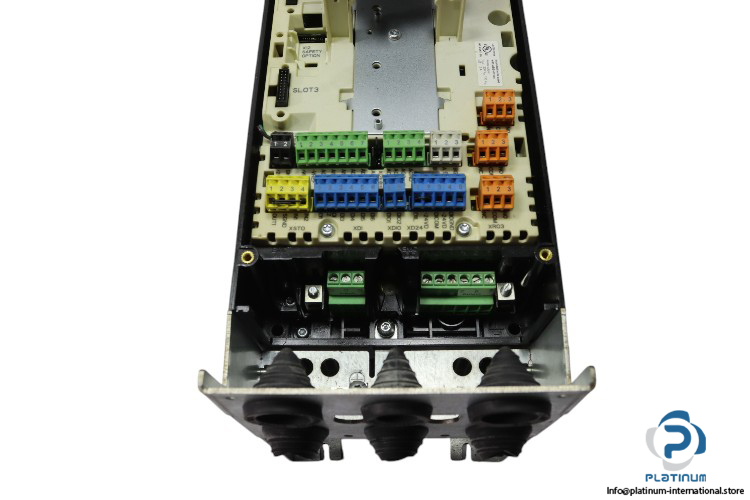

• Analog Inputs (AI): 2
• Digital Inputs (DI): 6

Output Specifications:

• Voltage: 0 to 380 / 480 / 500 V AC / 3-phase
• Output Current (Normal Use): 14 A
• Output Frequency: 0 to 500 Hz
• Analog Outputs (AO): 2
• Digital Outputs (DO): 2
• Output Power: 7.5 kW / 10 HP

Additional Features:

• Mounting Type: Wall-mounted

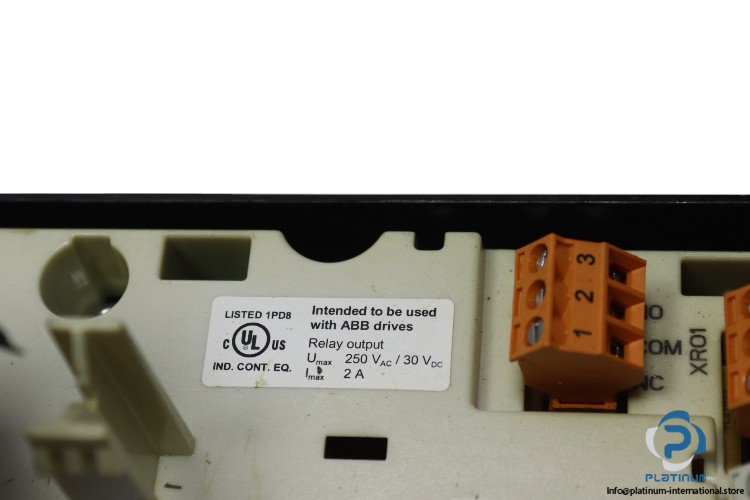

• Relay Output Voltage: 250 V AC / 30 V DC
• Relay Output Current: 2 A
• Temperature Rating: Max. 40 °C
• Degree of Protection: IP21
• Dimensions (W x H x D): 249 x 409 x 155 mm

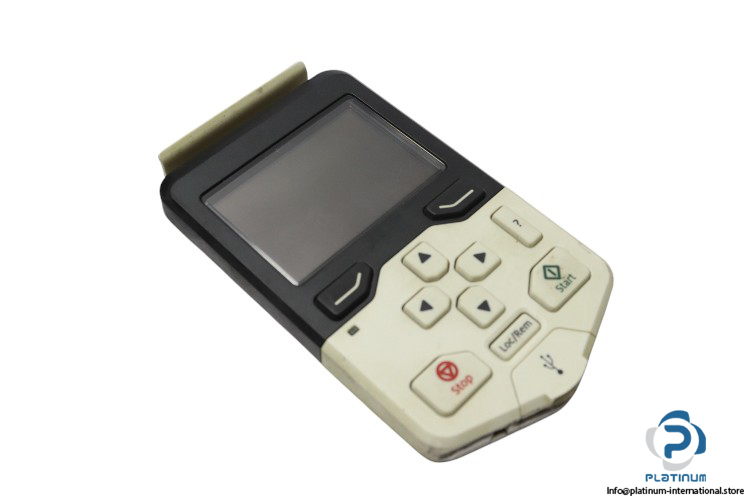

Attachments:

• Manufacturer: ABB
• Type: Control Panel

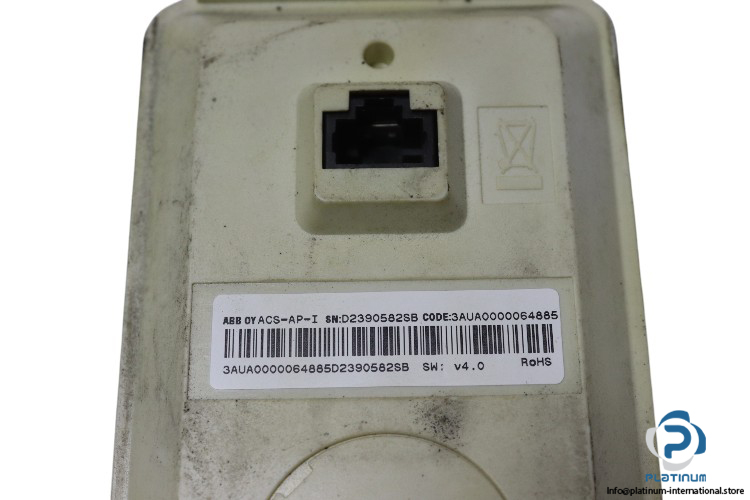

• Model: OY ACS-AP-I
• Part No.: 3AUA0000064885

Designed for efficiency and reliability, the ABB ACS880-01-014A-5+E200 is ideal for demanding applications that require precise frequency control and power optimization.
