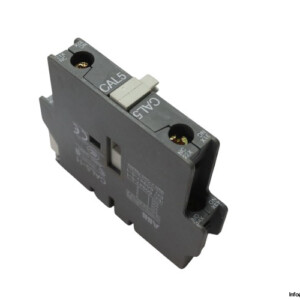

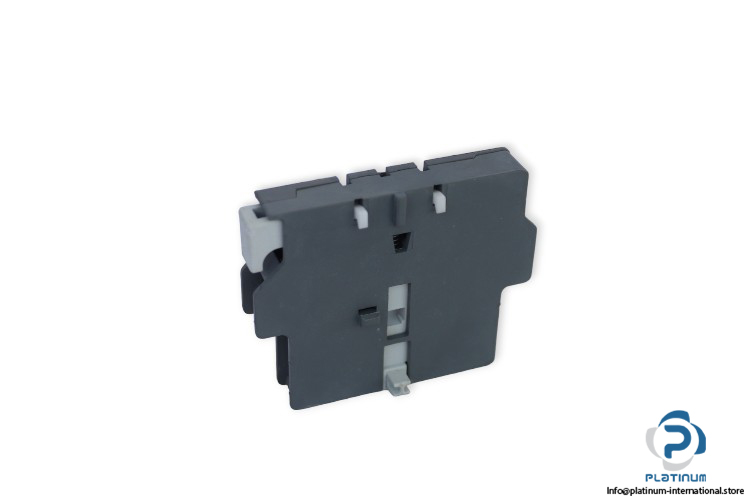

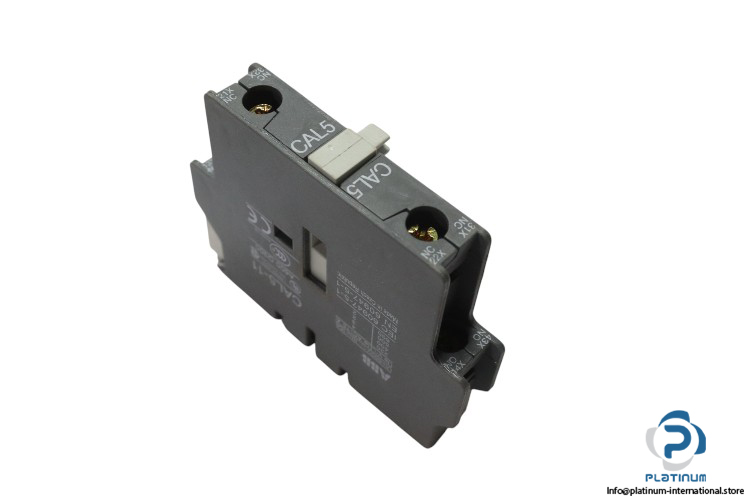

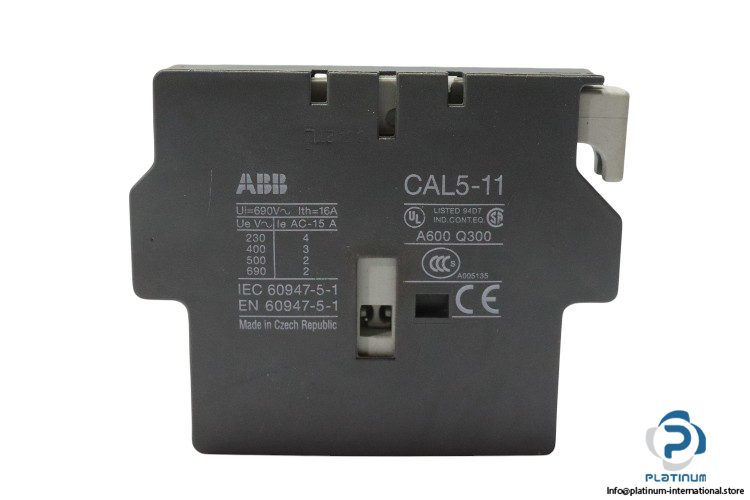

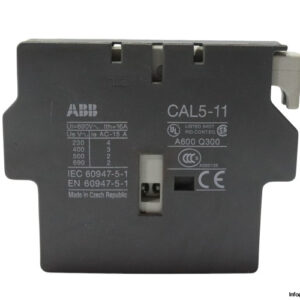

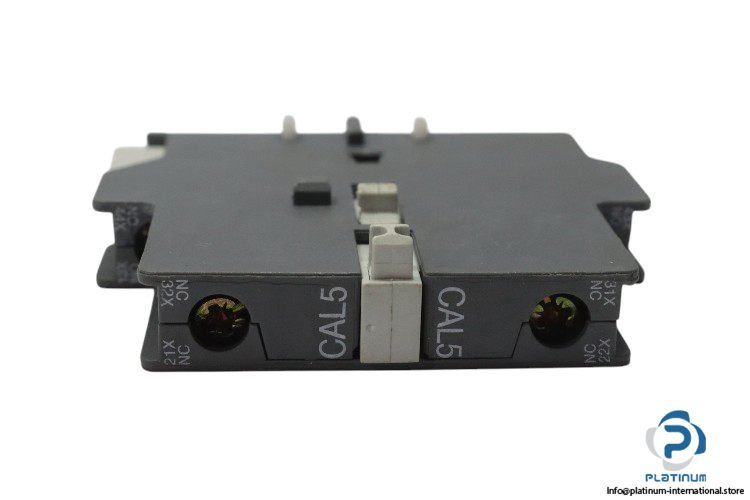

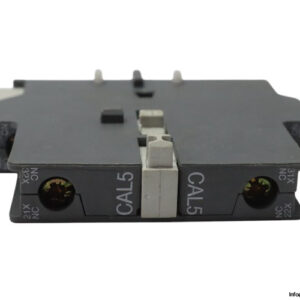

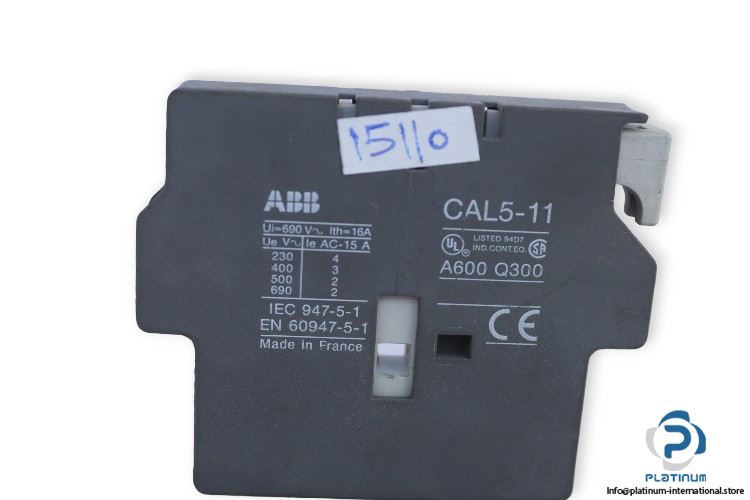

ABB CAL5-11 Auxiliary Contact Block
The ABB CAL5-11 (Part No. 1SBN010020R1011) is a high-performance auxiliary contact block engineered for reliable signaling and control functions in industrial automation. With a wide operational voltage range and dual contacts (1 NO + 1 NC), it ensures dependable operation across AC and DC control circuits.
- Manufacturer: ABB
- Type: Auxiliary Contact Block
- Model: CAL5-11
- Part No.: 1SBN010020R1011
Technical Information:
- Rated Operational Voltage: 690 V
- Rated Frequency (f): 50/60 Hz
- Thermal Current (Ith): 16 A
- Rated Operational Current AC-15 (Ie):
- 500 V: 2 A
- 690 V: 2 A
- 24 / 127 V: 6 A
- 220 / 240 V: 4 A
- 380 / 400 V: 3 A
- Rated Operational Current DC-13 (Ie):
- 24 V: 6 A / 144 W
- 48 V: 2.8 A / 134 W
- 72 V: 1 A / 72 W
- 110 V: 0.55 A / 60 W
- 125 V: 0.55 A / 69 W
- 220 V: 0.30 A / 66 W
- 250 V: 0.3 A / 75 W
- Rated Short-time Withstand Current Low Voltage (Icw):
- 0.1 s: 140 A
- 1 s: 100 A
- No. of Auxiliary Contacts: 1 NO + 1 NC
- Standard: IEC 947-5-1, EN 60947-5-1
- Terminal Type: Screw Terminals
- Protection Degree: IP20
- Dimensions: 12 x 62 x 74 mm
